Same model may have multiple batches, images only for reference.

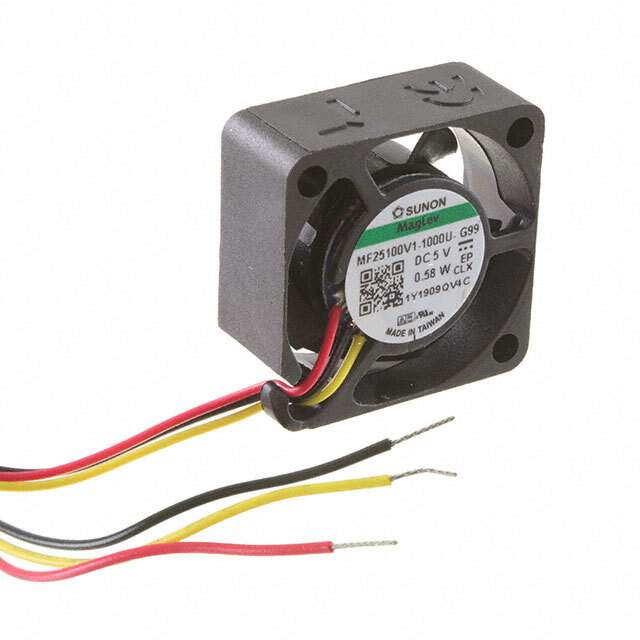

MF25100V1-1000U-G99 Real Image
Same model may have multiple batches, images only for reference.

MF25100V1-1000U-G99

Part No MF25100V1-1000U-G99
Manufacturer Sunon Fans
Catalog Fans, Thermal Management
Description FAN AXIAL 25X10MM VAPO 5VDC WIRE / Fan Tubeaxial 5VDC Square - 25mm L x 25mm H Vapo-Bearing™ 3.5 CFM (0.098m³/min) 3 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sunon Fans
Series MagLev® MF
Package Bulk
Voltage - Rated 5VDC
Size / Dimension Square - 25mm L x 25mm H
Width 10.00mm
Air Flow 3.5 CFM (0.098m³/min)
Static Pressure 0.250 in H2O (62.3 Pa)
Bearing Type Vapo-Bearing™
Fan Type Tubeaxial
Features Auto Restart, Speed Sensor (Tach)
Noise 23.0dB(A)
Power (Watts) 530 mW
RPM 13000 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency cURus, TUV
Weight 0.016 lb (7.26 g)
Current Rating (Amps) 0.105A
Voltage Range 2.5 ~ 6VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number MF25100V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1337635-MF25100V1-1000U-G99
Ultra Librarian 3D Model Ultra Librarian MF25100V1-1000U-G99 CAD Model

Description

The MagLev MF DC Brushless Fan is a high-performance fan designed for thermal management applications.

  • Size: 25mm L x 25mm H
  • Fan Type: Tubeaxial
  • Voltage: 2.5 ~ 6VDC
  • Power: 530mW
  • Bearing: Vapo-Bearing™
  • Noise Level: 23.0dB(A)
  • RPM (Max): 13000
  • Air Flow (Max): 3.5 CFM (0.098m³/min)
  • Static Pressure: 0.250 in H2O (62.3 Pa)
  • Frame/Blade Material: Polybutylene Terephthalate (PBT)
  • Lifetime: 70000 Hrs @ 40°C
  • Termination: 3 Wire Leads
  • Approvals: cURus, TUV
