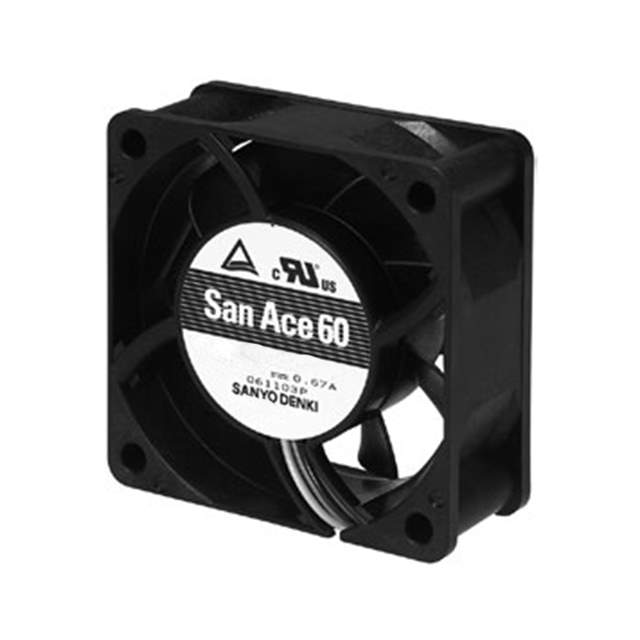

9G0648P4S001 Real Image
Same model may have multiple batches, images only for reference.

9G0648P4S001

Part No 9G0648P4S001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 60X25MM 48VDC WIRE / Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 49.4 CFM (1.38m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 60
Package Box
Voltage - Rated 48VDC
Size / Dimension Square - 60mm L x 60mm H
Width 25.00mm
Air Flow 49.4 CFM (1.38m³/min)
Static Pressure 1.223 in H2O (304.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 53.0dB(A)
Power (Watts) 8.64 W
RPM 11000 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency cURus, TUV
Weight 0.199 lb (90.26 g)
Current Rating (Amps) 0.180A
Voltage Range 36 ~ 72VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9G0648
Standard Package 80
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1340868-9G0648P4S001
Ultra Librarian 3D Model Ultra Librarian 9G0648P4S001 CAD Model

Description

The San Ace 60 DC brushless fan from Sanyo Denki America Inc is a high-quality fan designed for thermal management.

  • Product Name: San Ace 60
  • Voltage Rating: 48VDC
  • Power Rating: 8.64 W
  • Size: 60mm L x 60mm H
  • Shape: Square
  • Air Flow: 49.4 CFM (1.38m³/min)
  • Static Pressure: 1.223 in H2O (304.6 Pa)
  • Bearing Type: Ball
  • Product Status: Active
  • Application: Thermal Management
