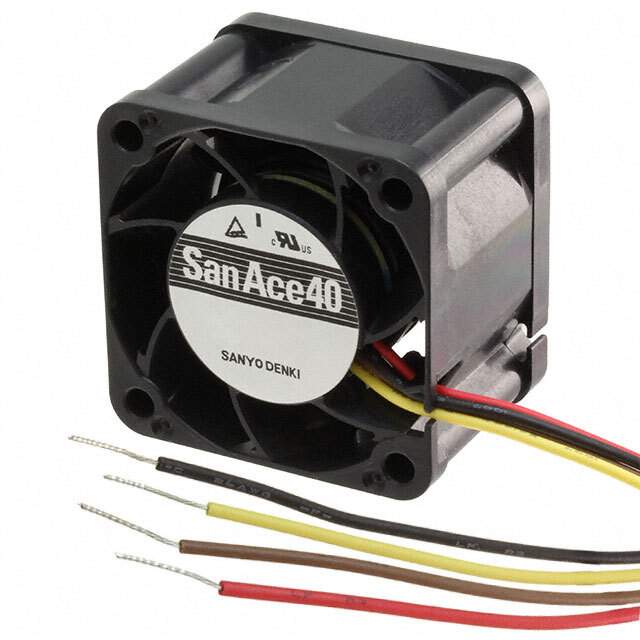

9GA0424P3G001

Part No 9GA0424P3G001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 40X28MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 21.5 CFM (0.602m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 40
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 40mm L x 40mm H
Width 28.00mm
Air Flow 21.5 CFM (0.602m³/min)
Static Pressure 1.810 in H2O (450.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 53.0dB(A)
Power (Watts) 5.28 W
RPM 16500 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.117 lb (53.07 g)
Current Rating (Amps) 0.220A
Voltage Range 21.6 ~ 26.4VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9GA0424
Standard Package 126
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1341258-9GA0424P3G001
Ultra Librarian 3D Model Ultra Librarian 9GA0424P3G001 CAD Model

Description

The San Ace 40 series DC brushless fan is a high-performance fan that is perfect for thermal management applications.

  • Voltage: 24VDC
  • Power: 5.28W
  • Air Flow: 21.5 CFM
  • Static Pressure: 1.810 in H2O
  • Control: PWM
  • Sensor: Speed Sensor (Tach)
  • Termination: 4 Wire Leads
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Temperature Range: -4 ~ 158°F
  • Lifetime: 40000 Hrs @ 60°C
  • Size: 40mm L x 40mm H
  • Packaging: Box
  • Weight: 0.117 lb (53.07 g)
  • Approvals: CSA, TUV, UL
  • ECCN: EAR99
