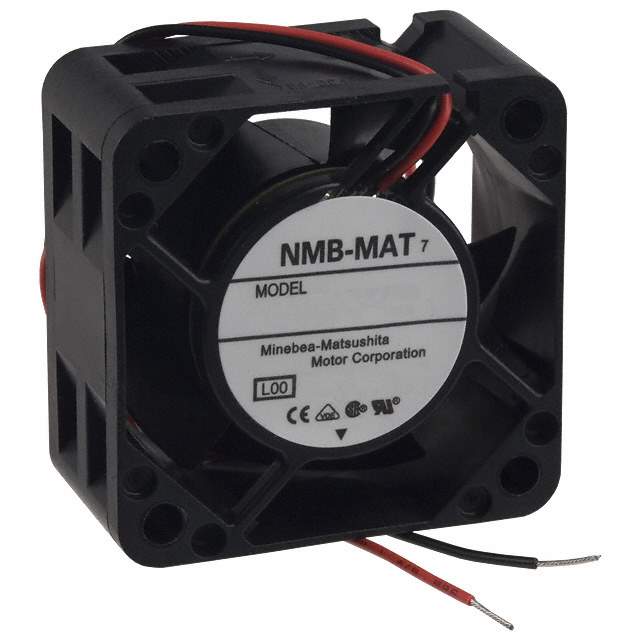

1608KL-05W-B10-L00 Real Image
Same model may have multiple batches, images only for reference.

1608KL-05W-B10-L00

Part No 1608KL-05W-B10-L00
Manufacturer NMB Technologies Corporation
Catalog Fans, Thermal Management
Description FAN AXIAL 40X20MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 4.9 CFM (0.137m³/min) 2 Wire Leads
Datasheet
1608KL-05W-B10-L00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr NMB Technologies Corporation
Series 1608KL
Package Bulk
Product Status Obsolete
Voltage - Rated 24VDC
Size / Dimension Square - 40mm L x 40mm H
Width 20.00mm
Air Flow 4.9 CFM (0.137m³/min)
Static Pressure 0.080 in H2O (19.9 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 20.0dB
Power (Watts) 960 mW
RPM 4500 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.055 lb (24.95 g)
Current Rating (Amps) 0.040A
Voltage Range 20 ~ 25.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 50000 Hrs @ 25°C
Standard Package 350
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1342144-1608KL-05W-B10-L00
Ultra Librarian 3D Model Ultra Librarian 1608KL-05W-B10-L00 CAD Model

Description

The 1342144-1608KL-05W-B10-L00 electronic component from NMB Technologies Corporation is a DC brushless fan with a tubeaxial design.

  • Voltage Range: 20 ~ 25.2VDC
  • Power (Watts): 960mW
  • Lifetime @ Temp.: 50000 Hrs @ 25°C
  • Noise: 20.0dB
  • RPM: 4500 RPM
  • Material - Frame: Plastic
  • Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
  • Shape: Square
  • Size / Dimension: 40mm L x 40mm H
