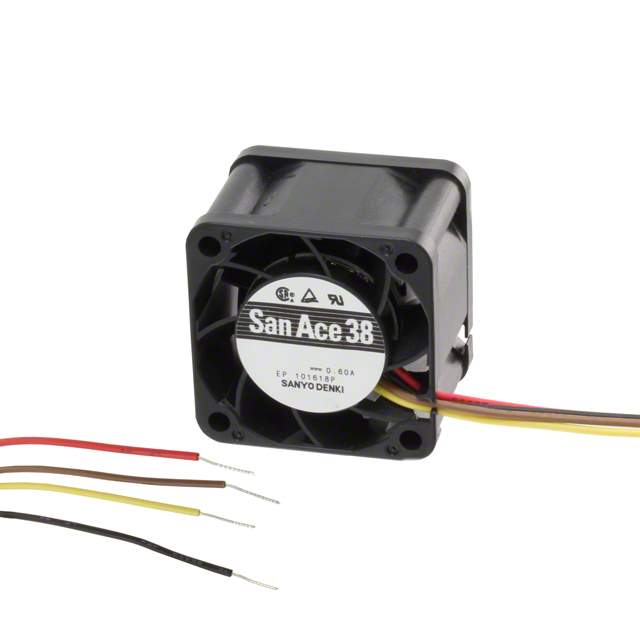

9GA0312P3J001 Real Image
Same model may have multiple batches, images only for reference.

9GA0312P3J001

Part No 9GA0312P3J001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 38X28MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 38mm L x 38mm H Ball 20.1 CFM (0.563m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 38
Package Box
Voltage - Rated 12VDC
Size / Dimension Square - 38mm L x 38mm H
Width 28.00mm
Air Flow 20.1 CFM (0.563m³/min)
Static Pressure 2.891 in H2O (720.1 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 57.5dB(A)
Power (Watts) 6.2 W
RPM 23500 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.115 lb (52.16 g)
Current Rating (Amps) 0.520A
Voltage Range 10.8 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9GA0312
Standard Package 126
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1340320-9GA0312P3J001
Ultra Librarian 3D Model Ultra Librarian 9GA0312P3J001 CAD Model

Description

The San Ace 38 series DC brushless fan is a high-performance fan that is perfect for thermal management applications.

  • Voltage Rating: 12VDC
  • Power Consumption: 6.2W
  • Air Flow: 20.1 CFM
  • Static Pressure: 2.891 in H2O
  • Control: PWM
  • Speed Sensor: Tach
  • Termination: 4 wire leads
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Operating Temperature: -4 ~ 158°F
  • Lifetime: 40000 Hrs @ 60°C
  • Size: 38mm L x 38mm H
  • Package: Box
  • Weight: 0.115 lb (52.16 g)
  • Approvals: CSA, TUV, UL
  • ECCN: EAR99
