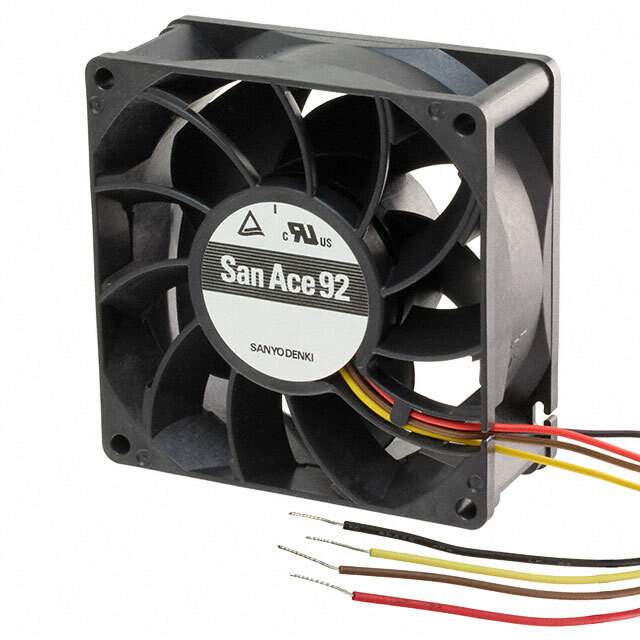

9GV0948P1H031

Part No 9GV0948P1H031
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 92X38MM 48VDC WIRE / Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 178.0 CFM (4.98m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 92
Package Box
Voltage - Rated 48VDC
Size / Dimension Square - 92mm L x 92mm H
Width 38.00mm
Air Flow 178.0 CFM (4.98m³/min)
Static Pressure 1.550 in H2O (385.0 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 64.0dB(A)
Power (Watts) 39.4 W
RPM 8500 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.553 lb (250.84 g)
Current Rating (Amps) 0.820A
Voltage Range 40.8 ~ 55.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9GV0948
Standard Package 28
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1338428-9GV0948P1H031
Ultra Librarian 3D Model Ultra Librarian 9GV0948P1H031 CAD Model

Description

The San Ace 92 is a high-performance DC brushless fan designed for use in thermal management applications.

  • Voltage Rating: 48VDC
  • Power Rating: 39.4W
  • Air Flow (Max): 178.0 CFM
  • Static Pressure: 1.550 in H2O
  • Control: PWM Control
  • Speed Sensor: Tach
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Temperature Range: -4 ~ 158°F (-20 ~ 70°C)
  • Lifetime: 40000 hours @ 60°C
  • Package: Box
  • Weight: 0.553 lb (250.84 g)
