Same model may have multiple batches, images only for reference.

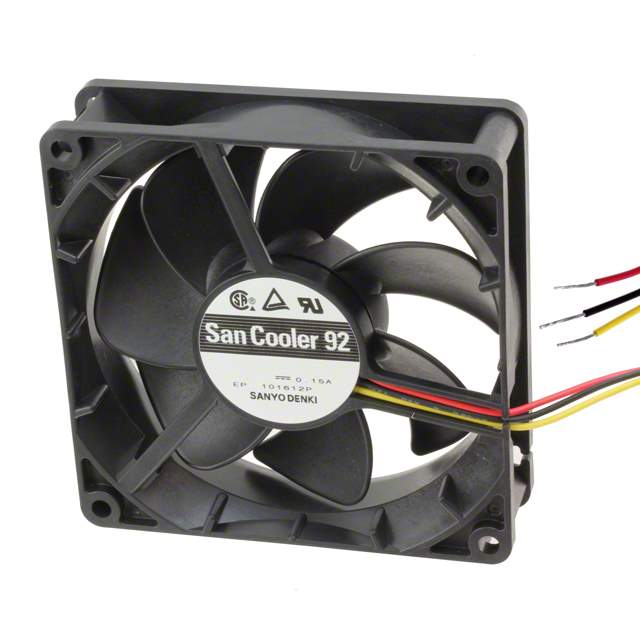

9A0924G401 Real Image
Same model may have multiple batches, images only for reference.

9A0924G401

Part No 9A0924G401
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 92X25MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 62.1 CFM (1.74m³/min) 3 Wire Leads
Datasheet
9A0924G401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Cooler 92
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 92mm L x 92mm H
Width 25.00mm
Air Flow 62.1 CFM (1.74m³/min)
Static Pressure 0.267 in H2O (66.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 43.0dB(A)
Power (Watts) 4.56 W
RPM 3900 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 140°F (-20 ~ 60°C)
Approval Agency CSA, TUV, UL
Weight 0.222 lb (100.7 g)
Current Rating (Amps) 0.190A
Voltage Range 12 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 30000 Hrs @ 60°C
Base Product Number 9A0924
Standard Package 28
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1340133-9A0924G401
Ultra Librarian 3D Model Ultra Librarian 9A0924G401 CAD Model

Description

The San Cooler 92 is a DC brushless fan that is designed for efficient thermal management.

  • Voltage Rating: 24VDC
  • Power Consumption: 4.56W
  • Features: Locked Rotor Protection, Speed Sensor (Tach)
  • Lifetime: 30000 hours @ 60 degrees Celsius
  • Size: 92mm L x 92mm H
  • Weight: 0.222 lb (100.7 g)
  • Voltage Range: 12 ~ 27.6VDC
  • Air Flow: 62.1 CFM (1.74m³/min)
  • Speed: 3900 RPM
  • Noise Level: 43.0dB(A)
  • Frame and Blade Material: Plastic
  • Operating Temperature: -4 ~ 140°F (-20 ~ 60°C)
