Same model may have multiple batches, images only for reference.

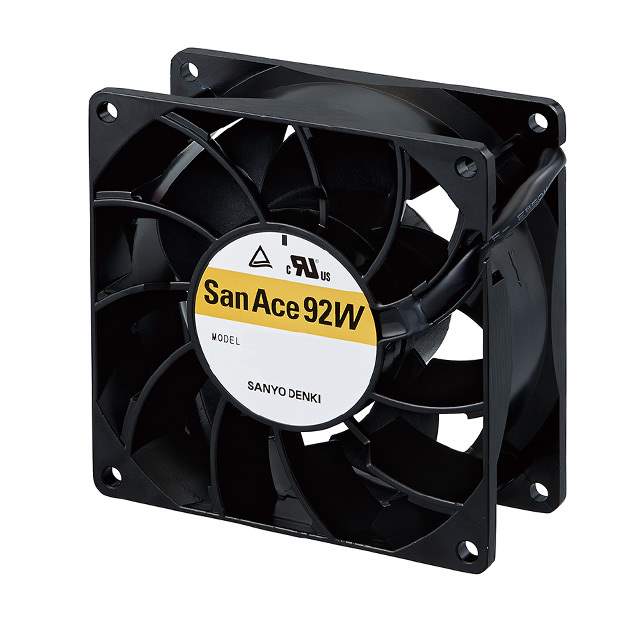

9WL0912P1H001 Real Image
Same model may have multiple batches, images only for reference.

9WL0912P1H001

Part No 9WL0912P1H001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 92X38MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 130.6 CFM (3.66m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 92W
Package Bulk
Voltage - Rated 12VDC
Size / Dimension Square - 92mm L x 92mm H
Width 38.00mm
Air Flow 130.6 CFM (3.66m³/min)
Static Pressure 1.726 in H2O (429.9 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 61.0dB(A)
Power (Watts) 22.8 W
RPM 9000 RPM
Termination 4 Wire Leads
Ingress Protection IP68 - Dust Tight, Waterproof
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency cURus, TUV
Weight 0.661 lb (299.82 g)
Current Rating (Amps) 1.90A
Voltage Range 10.2 ~ 13.2VDC
Material - Frame Aluminum
Material - Blade Plastic
Lifetime @ Temp. 100000 Hrs @ 60°C
Base Product Number 9WL0912
Standard Package 28
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1336904-9WL0912P1H001
Ultra Librarian 3D Model Ultra Librarian 9WL0912P1H001 CAD Model

Description

The San Ace 92W is a high-performance DC brushless fan designed for use in thermal management applications manufactured by Sanyo Denki America, Inc..

  • Voltage Rating: 12VDC
  • Power Rating: 22.8W
  • Maximum Air Flow: 130.6 CFM
  • Static Pressure: 1.726 in H2O
  • Features: PWM control and a speed sensor (tach)
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Frame Material: Aluminum
  • Blade Material: Plastic
  • Ingress Protection: IP68 (dust tight and waterproof)
  • Temperature Range: -4 ~ 158°F (-20 ~ 70°C)
  • Lifetime: 100000 hours @ 60°C
  • Package: Bulk
  • Weight: 0.661 lb (299.82 g)
