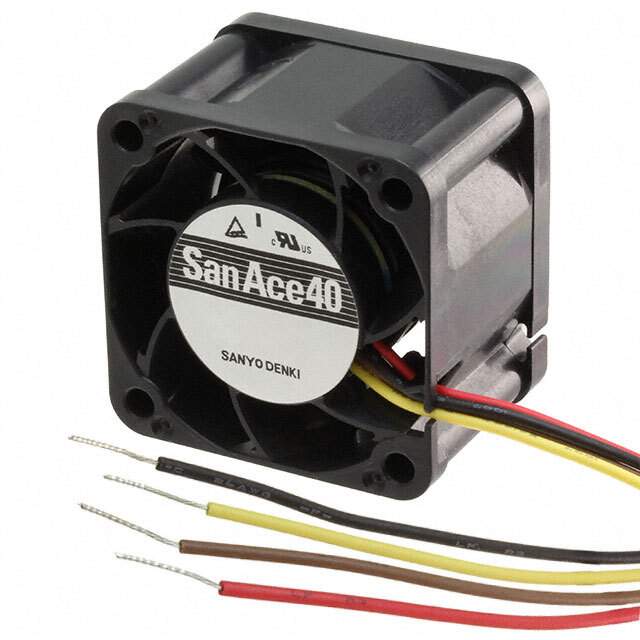

9GAX0412P3S003

Part No 9GAX0412P3S003
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 40X28MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 31.8 CFM (0.890m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 40
Package Box
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Width 28.00mm
Air Flow 31.8 CFM (0.890m³/min)
Static Pressure 4.017 in H2O (1000.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 64.0dB(A)
Power (Watts) 15.6 W
RPM 25000 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 140°F (-20 ~ 60°C)
Approval Agency CSA, TUV, UL
Weight 0.117 lb (53.07 g)
Current Rating (Amps) 1.30A
Voltage Range 10.8 ~ 12.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 30000 Hrs @ 60°C
Base Product Number 9GAX0412
Standard Package 126
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1339771-9GAX0412P3S003
Ultra Librarian 3D Model Ultra Librarian 9GAX0412P3S003 CAD Model

Description

The San Ace 40 is a high-performance DC brushless fan designed for use in thermal management applications.

  • Voltage Rating: 12VDC
  • Power Rating: 15.6W
  • Air Flow: 31.8 CFM
  • Static Pressure: 4.017 in H2O
  • Control: PWM
  • Speed Sensor: Tach
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Temperature Range: -4 ~ 140°F (-20 ~ 60°C)
  • Lifetime: 30000 hours @ 60°C
  • Package: Box
  • Weight: 0.117 lb (53.07 g)
