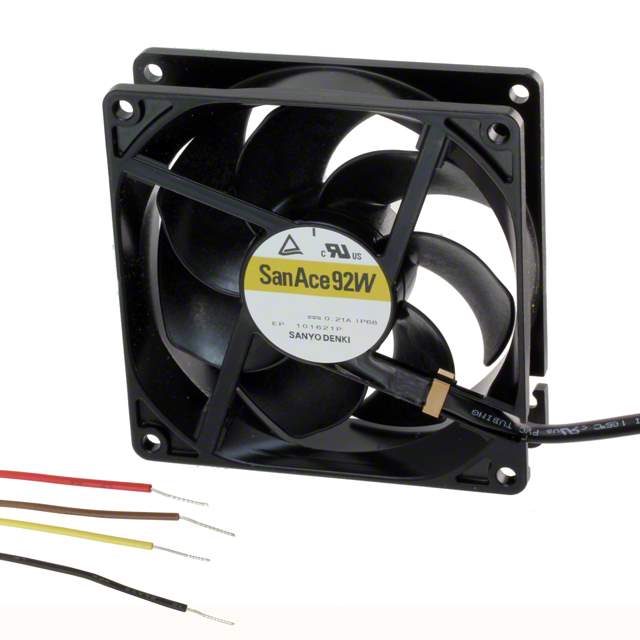

Same model may have multiple batches, images only for reference.

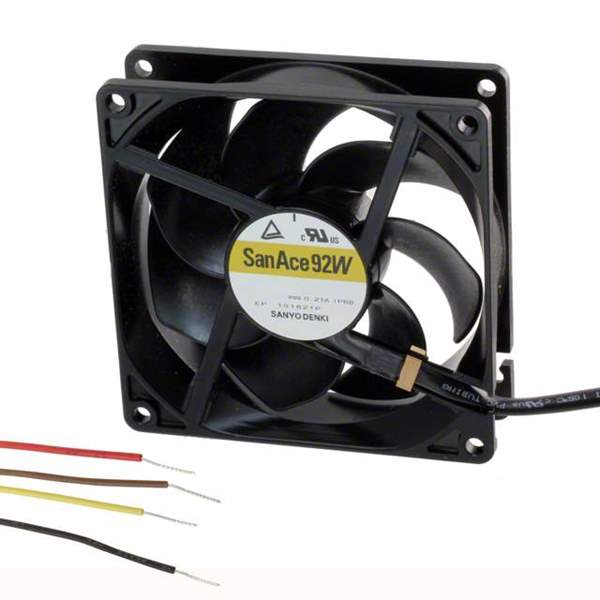

9WL0924P4J001 Real Image
Same model may have multiple batches, images only for reference.

9WL0924P4J001

Part No 9WL0924P4J001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 92X25MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 77.7 CFM (2.18m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 92W
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 92mm L x 92mm H
Width 25.00mm
Air Flow 77.7 CFM (2.18m³/min)
Static Pressure 0.420 in H2O (104.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 44.0dB(A)
Power (Watts) 5.04 W
RPM 5000 RPM
Termination 4 Wire Leads
Ingress Protection IP68 - Dust Tight, Waterproof
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.375 lb (170.1 g)
Current Rating (Amps) 0.210A
Voltage Range 21.6 ~ 26.4VDC
Material - Frame Aluminum
Material - Blade Plastic
Lifetime @ Temp. 180000 Hrs @ 60°C
Base Product Number 9WL0924
Standard Package 28
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1339859-9WL0924P4J001
Ultra Librarian 3D Model Ultra Librarian 9WL0924P4J001 CAD Model

Description

The Sanyo Denki America Inc. San Ace 92W is a DC brushless fan component that features PWM control, speed sensor (Tach), and 4 wire leads.

  • Shape: Square
  • Dimensions: 92mm L x 92mm H
  • Voltage Rating: 24VDC
  • Power Rating: 5.04W
  • Lifetime: 180,000 hrs @ 60°C
  • Weight: 0.375 lb (170.1 g)
