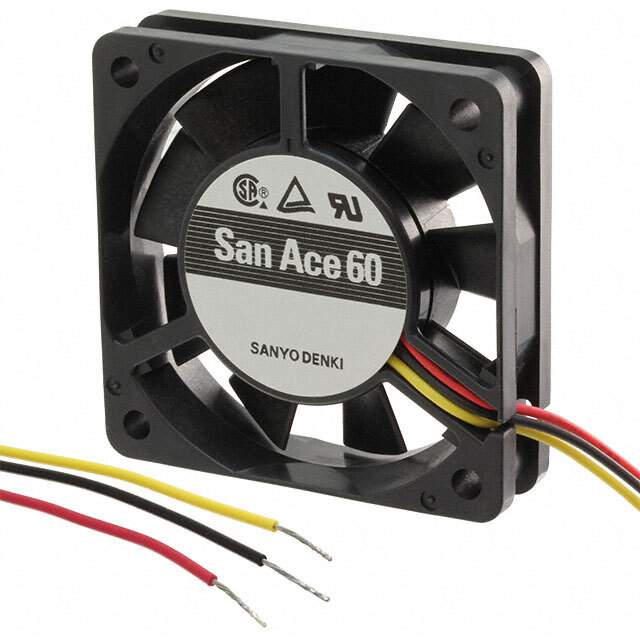

109P0605M7D01 Real Image
Same model may have multiple batches, images only for reference.

109P0605M7D01

Part No 109P0605M7D01
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 60X15MM BALL 5VDC WIRE / Fan Tubeaxial 5VDC Square - 60mm L x 60mm H Ball 10.6 CFM (0.297m³/min) 3 Wire Leads
Datasheet
109P0605M7D01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 60
Package Box
Voltage - Rated 5VDC
Size / Dimension Square - 60mm L x 60mm H
Width 15.00mm
Air Flow 10.6 CFM (0.297m³/min)
Static Pressure 0.091 in H2O (22.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Sensor
Noise 25.0dB(A)
Power (Watts) 750 mW
RPM 3100 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.133 lb (60.33 g)
Current Rating (Amps) 0.150A
Voltage Range 4.5 ~ 5.5VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 60000 Hrs @ 60°C
Base Product Number 109P0605
Standard Package 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1339022-109P0605M7D01
Ultra Librarian 3D Model Ultra Librarian 109P0605M7D01 CAD Model

Description

The San Ace 60 DC Brushless Fan is a high-quality fan designed for thermal management in electronic devices.

  • Features: Locked Rotor Sensor, 3 Wire Leads
  • Frame and Blade Material: Plastic
  • Shape: Square
  • Length: 60mm
  • Height: 60mm
  • Voltage Range: 4.5 ~ 5.5VDC
  • Power: 750 mW
  • Lifetime: 60000 hours @ 60°C
  • Weight: 0.133 lb (60.33 g)
  • Air Flow: 10.6 CFM (0.297m³/min)
  • Static Pressure: 0.091 in H2O (22.7 Pa)
  • Noise Level: 25.0dB(A)
  • Speed: 3100 RPM
  • Approvals: CSA, TUV, UL
