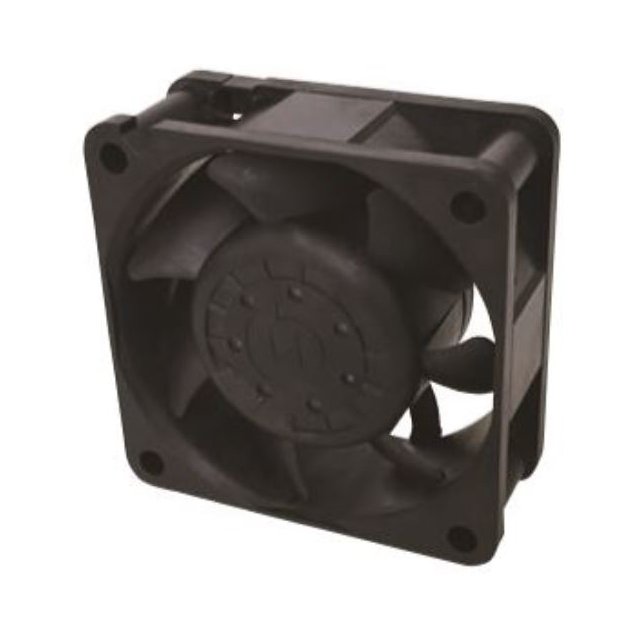

06025DA-12R-AU-02 Real Image
Same model may have multiple batches, images only for reference.

06025DA-12R-AU-02

Part No 06025DA-12R-AU-02
Manufacturer NMB Technologies Corporation
Catalog Fans, Thermal Management
Description FAN AXIAL 60X25MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 45.6 CFM (1.28m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr NMB Technologies Corporation
Series 06025DA
Package Box
Voltage - Rated 12VDC
Size / Dimension Square - 60mm L x 60mm H
Width 25.00mm
Air Flow 45.6 CFM (1.28m³/min)
Static Pressure 1.170 in H2O (291.4 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Auto Restart, PWM Control, Speed Sensor (Tach)
Noise 52.0dB
Power (Watts) 8.04 W
RPM 11000 RPM
Termination 4 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, cULus, VDE
Current Rating (Amps) 0.670A
Voltage Range 7 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 06025DA
Standard Package 105
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1342448-06025DA-12R-AU-02
Ultra Librarian 3D Model Ultra Librarian 06025DA-12R-AU-02 CAD Model

Description

The 06025DA series DC brushless fan is a high-performance fan with a square size of 60mm L x 60mm H.

  • Square Size: 60mm L x 60mm H
  • Voltage - Rated: 12VDC
  • Power (Watts): 8.04 W
  • Features: Auto Restart, PWM Control, Speed Sensor (Tach)
  • Termination: 4 Wire Leads
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Air Flow: 45.6 CFM (1.28m³/min)
  • Static Pressure: 1.170 in H2O (291.4 Pa)
  • Noise: 52.0dB
  • RPM: 11000
  • Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
  • Life Expectancy: 40000 Hrs @ 60°C
  • Material - Frame: Plastic
  • Material - Blade: Plastic
  • Approvals: CE, cULus, VDE
