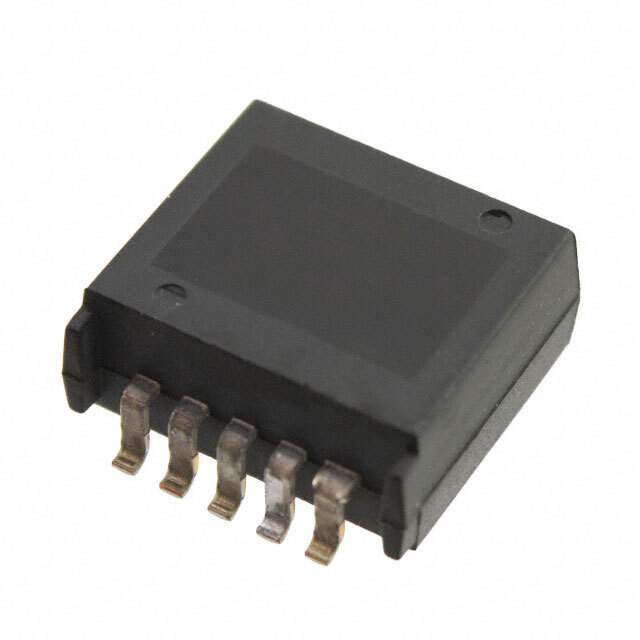

IPM24S0A0R03FA Real Image
Same model may have multiple batches, images only for reference.

IPM24S0A0R03FA

Part No IPM24S0A0R03FA
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description Delphi Series IPM24S0A0, Non-Isolated, Integrated Point-of-Load Power Modules: 8V~36V input, 1.2~2.5V and 3A Output | DC DC CONVERTER 1.2-2.5V 7.5W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Delta Electronics
Packaging Tube
Status Obsolete
Type Non-Isolated PoL Module
Voltage - Input (Minimum) 8V
Voltage - Input (Maximum) 36V
Voltage - Output 1 1.2 ~ 2.5V
Current - Output (Maximum) 3A
Power (W) 7.5W
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Efficiency 85%
Mounting Style Through Hole
Manufacturer Package 5-SIP Module
Parts Dimension 0.70" L x 0.31" W x 0.65" H (17.8mm x 7.9mm x 16.5mm)
Control Features Enable, Active High
Manufacturer Pack Quantity 22
MSL Level 3 (168 Hours)
Win Source Part Number 1186277-IPM24S0A0R03FA
Manufacturer Homepage www.deltaww.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IPM24S0A0R03FA CAD Model

Description

The Delta Electronics 1186277-IPM24S0A0R03FA is an obsolete non-isolated PoL module with a mounting style of through hole. 1186277-IPM24S0A0R03FA is from Delta Electronics.

  • Isolation: Non-Isolated
  • Mounting Style: Through Hole
  • Features: Remote On/Off, OCP, SCP, UVLO
  • Application: ITE (Commercial)
  • Control Feature: Enable, Active High
  • Output Voltage Range: 1.2~2.5V
  • Efficiency: 85%
  • Manufacturer Package: 5-SIP Module
  • Maximum Output Current: 3A
  • Power: 7.5W
  • Input Voltage Range: 8V to 36V
  • Supply and Demand Status: Limited
  • MSL Level: 3 (168 hours)
  • Operating Temperature: -40°C to 125°C
  • Dimensions: 0.70" L x 0.31" W x 0.65" H (17.8mm x 7.9mm x 16.5mm)
