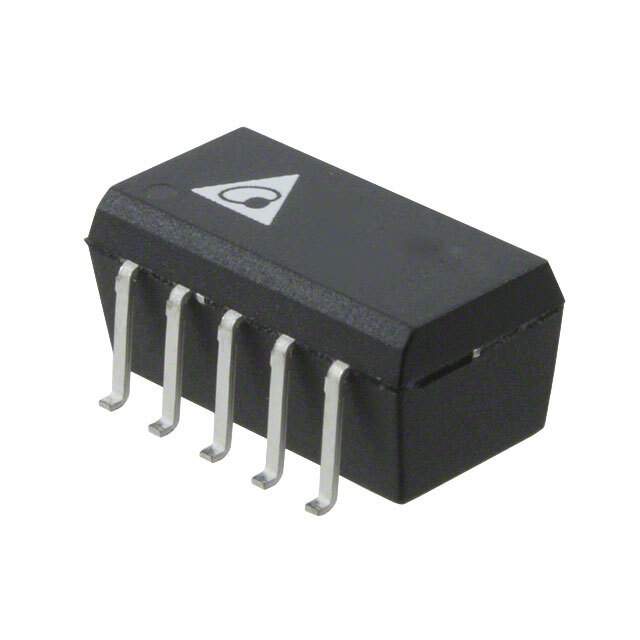

Same model may have multiple batches, images only for reference.

SA01D1212A

Get a Quote

Part No	SA01D1212A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 10.8V - 13.2V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SA01D (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	42mA, 42mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	80%
Mounting	SMD (SMT)
Package / Case	8-SMD Module
Dimension	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Base Product Number	SA01D
Other Names	941-1256
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237513-SA01D1212A
Ultra Librarian 3D Model	Ultra Librarian SA01D1212A CAD Model

Alternative Products

Description

{"Intro":"

The SA01D1212A is an isolated module DC DC converter manufactured by Delta Electronics.

","Specifications":"

Series: 1W SA01D series
Features: SCP feature
Package: Tube
Mounting: SMD (SMT) mounting
Power (watts): 1W
Voltage Isolation: 1 kV
Number of Outputs: 2
Maximum Output Current: 42mA
Maximum Output Current: 42mA
Voltage Input (min): 10.8V
Voltage Input (max): 13.2V
Voltage Output 1: 12V
Voltage Output 2: -12V
Efficiency: 80 percent
Package/Case: 8-SMD module
