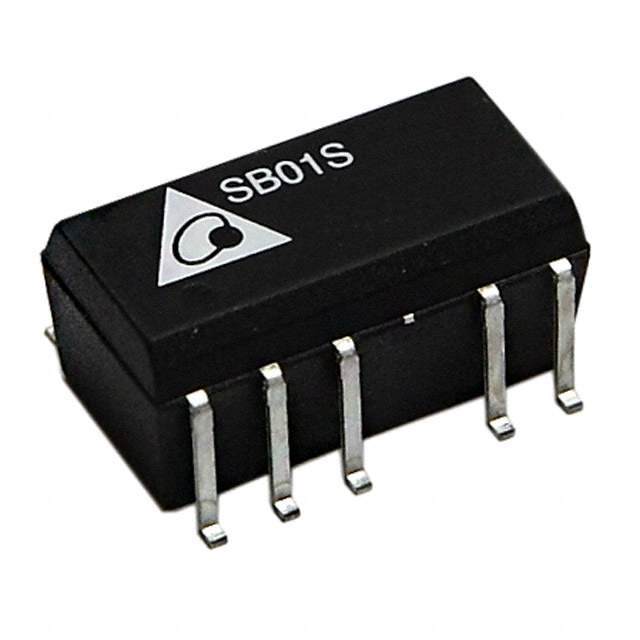

Same model may have multiple batches, images only for reference.

SB01S0505A

Name: SB01S0505A
Brand: Delta Electronics
SKU: 1237489
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SB01S0505A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet	SB01S0505A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SB01S/D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	71%
Mounting	SMD (SMT)
Package / Case	12-SMD Module, 10 Leads
Dimension	0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Base Product Number	SB01S
Other Names	941-1262
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237489-SB01S0505A
Ultra Librarian 3D Model	Ultra Librarian SB01S0505A CAD Model

Alternative Products

Description

The Delta Electronics 1237489-SB01S0505A is a power supply component with an isolated module type.

Series: SB01S/D (2W)
Package: in a tube
Standard Package: includes 10 units
Features: SCP
Suitable for: medical applications
Mounting: SMD (SMT)
Power Output: 1 W
Voltage Isolation: 3 kV
Number of Outputs: 1
Maximum Current Output: 200mA
Voltage Input Range: from 4.5V to 5.5V
Voltage Output: 5V
Efficiency: 71%
Temperature Range for Operating: from -40°C to 85°C
Dimension: 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Radiation Hardened: No
Military Standards: No
