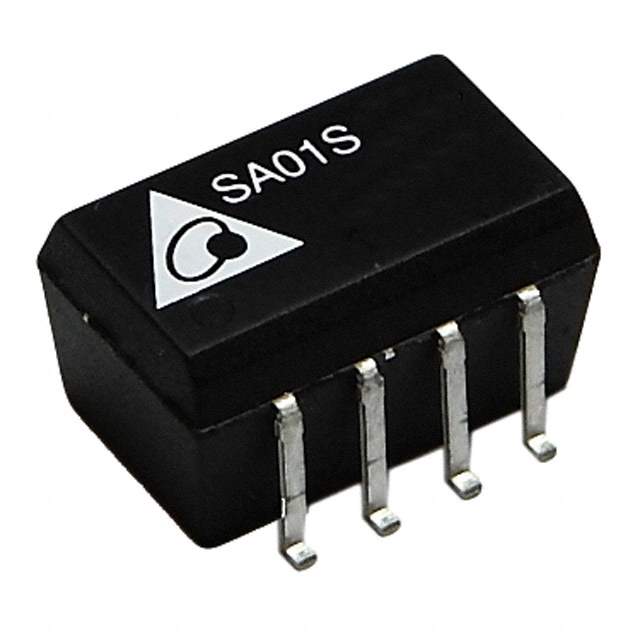

Same model may have multiple batches, images only for reference.

SA01S2403A

Name: SA01S2403A
Brand: Delta Electronics
SKU: 1237502
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SA01S2403A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 1W / Isolated Module DC DC Converter 1 Output 3.3V 300mA 21.6V - 26.4V Input
Datasheet	SA01S2403A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SA01S (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	3.3V
Current - Output (Max)	300mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	73%
Mounting	SMD (SMT)
Package / Case	8-SMD Module
Dimension	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Base Product Number	SA01S
Other Names	941-1245
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237502-SA01S2403A
Ultra Librarian 3D Model	Ultra Librarian SA01S2403A CAD Model

Alternative Products

Description

The Delta Electronics 1237502-SA01S2403A is an isolated module type DC DC converter with a power of 1W.

Voltage Isolation: 1 kV
Efficiency: 73%
Current Output: 300mA
Voltage Input: 21.6V to 26.4V
Voltage Output: 3.3V
Package: 8-SMD module
Temperature Range: -40°C to 85°C
Suitable for: medical applications
