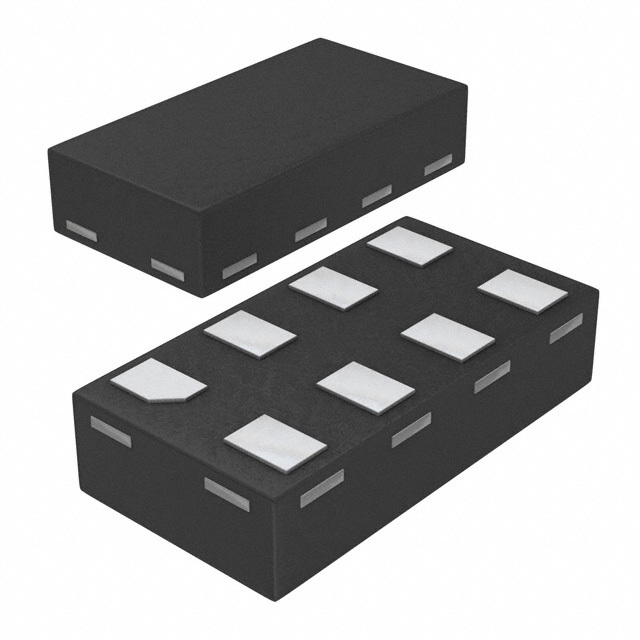

Diodes Incorporated 74LVC2G08HD4-7 Dual 2-Input AND Gate

The 74LVC2G08HD4-7 is a high-performance, dual 2-input AND gate integrated circuit from Diodes Incorporated, designed to operate at the cutting edge of technology with a 3.6V maximum supply voltage. This sophisticated logic gate is part of the 74LVC family, which is renowned for its low-voltage operation and low power consumption. It is an ideal choice for a wide range of applications, including portable devices, computing, and high-speed interfacing within telecommunications.

Constructed with advanced silicon-gate CMOS technology, the 74LVC2G08HD4-7 ensures a high level of scalability and reliability. Its 5-pin SOT-25 package makes it suitable for compact PCB layouts, addressing the needs of space-constrained applications. The device is also characterized by its high noise immunity and low static power consumption, with a typical ICC of only 10µA, significantly reducing the overall power footprint of electronic systems.

One of the key features of the 74LVC2G08HD4-7 is its broad operating voltage range of 1.65V to 3.6V, which allows for interfacing with both 3.3V and 2.5V logic levels without the need for level shifters. This flexibility makes the device highly versatile in mixed-voltage environments. Moreover, the 74LVC2G08HD4-7 supports 5V tolerant inputs, providing additional compatibility with traditional TTL levels and protecting the device from potential damage during voltage spikes.

The output drive capability of the 74LVC2G08HD4-7 is impressive, with the ability to drive up to 24mA at the output pins, ensuring robust signal transmission even in heavy load conditions. Additionally, the device is specified for a wide operating temperature range from -40°C to +125°C, making it suitable for industrial applications that require reliable performance under extreme conditions.

In summary, the Diodes Incorporated 74LVC2G08HD4-7 dual 2-input AND gate is a highly reliable and efficient solution for modern electronic circuits. With its low power consumption, high noise immunity, and compatibility with various logic levels, it stands as an excellent choice for designers looking to optimize their digital systems.
