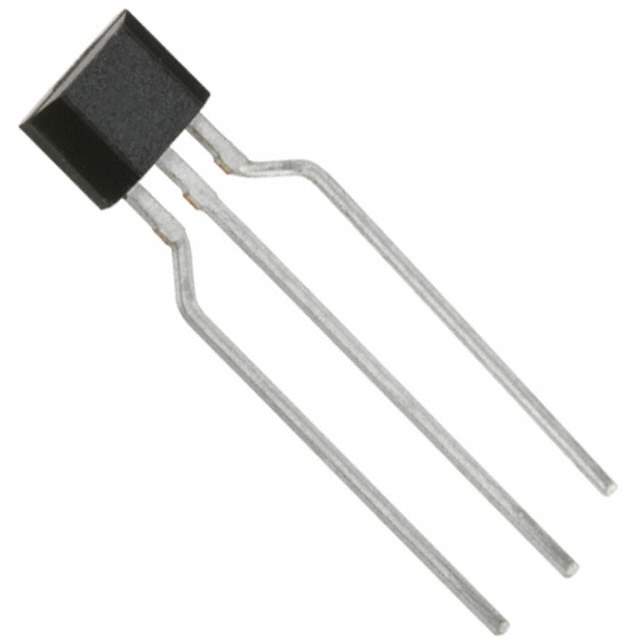

The AH1809-P-A from Diodes Incorporated is a high-performance, micropower Omnipolar Hall Effect switch IC, designed for a wide range of applications requiring a reliable and robust switching solution. This device is particularly suited for battery-powered consumer products, home appliances, and industrial equipment, where power efficiency and longevity are crucial.

Key Features

• High Sensitivity: The AH1809-P-A is capable of detecting magnetic fields with high precision, ensuring accurate switching even in applications with weak magnetic signals.
• Omnipolar Operation: This IC can be activated by both North and South poles, offering greater flexibility in magnet selection and system design.
• Low Power Consumption: With a supply current as low as 24μA, the AH1809-P-A is optimized for battery-operated devices, contributing to extended battery life.
• Wide Operating Voltage Range: The device supports a voltage range from 2.5V to 5.5V, accommodating various power supply specifications.
• Chopper Stabilized Design: The built-in chopper stabilization feature provides a stable operating point against temperature and supply voltage variations, enhancing reliability.
• High ESD Protection: It offers excellent protection against electrostatic discharge, withstanding up to 8kV human body model (HBM).

Applications

• Smart Home Devices
• Battery-Operated Toys
• Portable Electronics
• Power Tools
• Industrial Sensing and Control Systems

The AH1809-P-A is available in a small and low-profile package, making it ideal for space-constrained applications. Its robust design ensures stable operation over a broad temperature range of -40°C to 85°C, accommodating various environmental conditions.

Overall, the AH1809-P-A Hall Effect switch from Diodes Incorporated represents a versatile and efficient solution for designers looking to incorporate reliable magnetic switching capabilities into their products.
