Product Overview: AP1118D15L-13 from Diodes Incorporated

The AP1118D15L-13 is a highly reliable, low dropout linear regulator designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This component is specifically engineered to deliver a fixed output voltage of 1.5V, making it an ideal choice for a wide range of electronic devices that require stable and precise voltage regulation.

Key Features

• Output Voltage: Fixed at 1.5V, the AP1118D15L-13 provides a stable voltage supply for critical applications.
• High Accuracy: It offers excellent regulation with a low dropout voltage, ensuring devices operate accurately under varying load conditions.
• Current Capacity: Capable of delivering up to 1A of output current, it can power a range of moderate to high-power circuits.
• Thermal Protection: The built-in thermal shutdown feature protects the device from overheating, enhancing its reliability and lifespan.
• Short-Circuit Protection: With short-circuit protection, the AP1118D15L-13 safeguards against potential damage from output overcurrent scenarios.

Applications

The versatility of the AP1118D15L-13 makes it suitable for a broad spectrum of applications, including but not limited to:

• Consumer Electronics
• Computer Peripherals
• Telecommunication Devices
• Power Management Circuits

Quality and Compliance

Diodes Incorporated ensures that the AP1118D15L-13 meets the highest standards of quality. The device is RoHS compliant, adhering to environmental regulations and minimizing the use of hazardous substances. Additionally, it is characterized for operation from -40°C to +125°C, guaranteeing performance across a wide temperature range.

Package and Availability

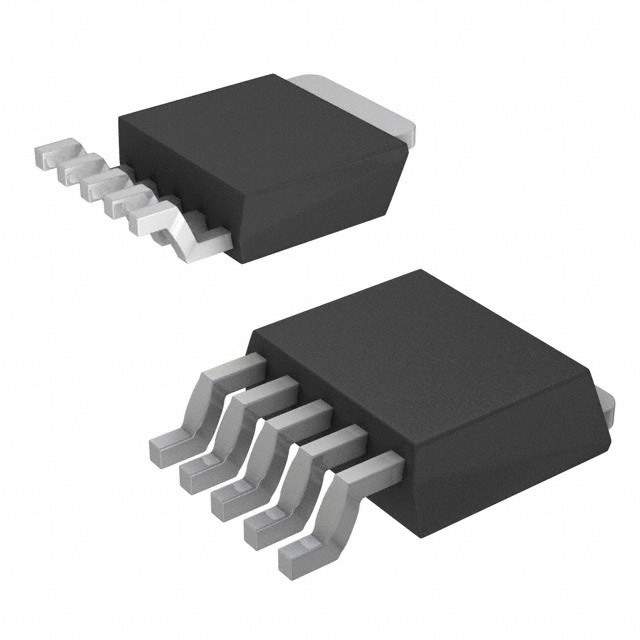

The AP1118D15L-13 comes in a TO-252 (DPAK) package, which is widely used in the industry and known for its compact size and excellent power dissipation characteristics. This product is available through various distributors, and detailed datasheets can be accessed for technical specifications and application guidelines.

For engineers and designers looking for a dependable voltage regulator that combines performance with durability, the AP1118D15L-13 from Diodes Incorporated is an excellent choice that meets a diverse array of power management requirements.
