The AP1501-33T5 is a versatile and high-performance step-down voltage regulator designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors. This particular model is part of the AP1501 series, which is known for its robustness and efficiency in a wide range of power conversion applications.

Key Features

• Output Voltage: The AP1501-33T5 provides a fixed output voltage of 3.3V, which is ideal for logic-level power supplies and other low-voltage applications.
• Output Current: Capable of delivering up to 5A of continuous output current, this regulator can power a wide array of devices and circuits without the need for an additional heat sink under normal operating conditions.
• High Efficiency: With an efficiency rate that can reach up to 85%, this device ensures minimal power loss during voltage regulation, making it suitable for energy-sensitive designs.
• Adjustable Output: Although the AP1501-33T5 is pre-set to a 3.3V output, it also offers the flexibility to adjust the voltage as needed with external resistors.
• Wide Input Voltage Range: The device operates with an input voltage range from 4.5V to 40V, accommodating a broad spectrum of power sources.
• Thermal Shutdown and Current Limit Protection: These built-in safety features protect the device from over-temperature and over-current conditions, enhancing its reliability and longevity.

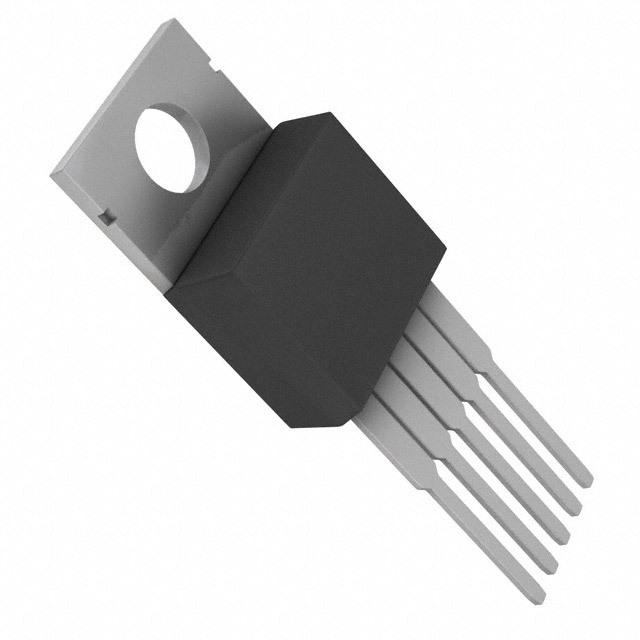

• Standard Package: The AP1501-33T5 comes in a TO-220-5 package, which is widely used and suitable for through-hole mounting, making it easy to integrate into various circuit designs.

Applications

The AP1501-33T5 is an ideal choice for a multitude of applications that require a stable and reliable power supply. It is commonly used in:

• Consumer Electronics
• Telecommunications
• Computer Peripheral Systems
• Industrial Equipment
• Battery-Powered Devices

In conclusion, the AP1501-33T5 from Diodes Incorporated is a highly efficient, reliable, and versatile voltage regulator that can meet the needs of a wide range of electronic applications. Its robust design, coupled with protection features, ensures performance and durability in the most demanding situations.
