Product Overview: AP1507-12D5L-13 from Diodes Incorporated

The AP1507-12D5L-13 is a high-performance, adjustable and fixed voltage step-down (buck) converter designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This regulator is capable of delivering up to 3A of output current with an input voltage range of 4.75V to 40V. The device is engineered to provide a highly efficient power conversion solution with a fixed output voltage of 12V and an adjustable version that can be set from 1.23V to 37V using external resistors.

Key Features

• Output Voltage: The AP1507-12D5L-13 provides a stable 12V fixed output, which is essential for consistent performance in electronic circuits.
• High Efficiency: With its integrated 4.5A switch, the device can maintain high efficiency across a wide range of load conditions, making it suitable for various applications.
• Adjustable Version: Users can adjust the output voltage to meet specific requirements by adding external resistors, offering flexibility in design.
• Wide Input Voltage Range: The ability to operate with an input voltage from 4.75V to 40V makes this regulator versatile for use in different power environments.
• Thermal Shutdown: The built-in thermal shutdown feature protects the device from overheating, ensuring reliable operation and longevity.
• Current Limit Protection: With its current limit protection, the AP1507-12D5L-13 prevents damage from overcurrent conditions.

Applications

The AP1507-12D5L-13 is suitable for a wide range of applications, including:

• Simple High-Efficiency Step-Down Regulators
• Positive to Negative Converters (Buck-Boost)
• Pre-Regulator for Linear Regulators
• On-Card Switching Regulators

Package and Quality

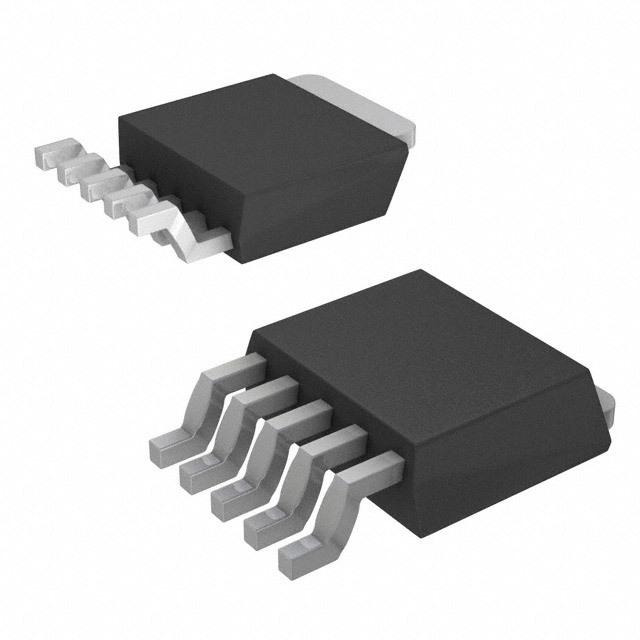

This device is offered in a TO-252-5L (DPAK) package, providing a compact footprint for space-constrained applications. It is also characterized for operation from -40°C to +85°C, ensuring performance in a wide range of environmental conditions. Diodes Incorporated is committed to high-quality standards, and the AP1507-12D5L-13 is no exception, meeting rigorous industry specifications for reliability and performance.
