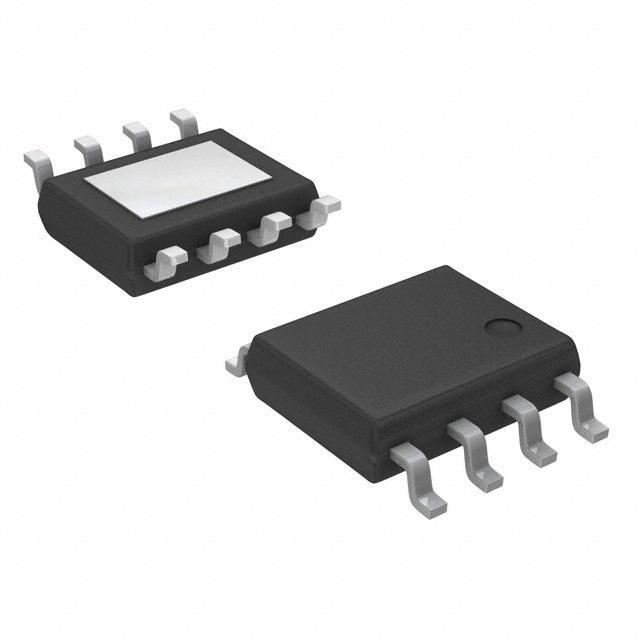

Diodes Incorporated AP3203MPTR-G1 Overview

The AP3203MPTR-G1 is a versatile and efficient DC-DC step-down converter from Diodes Incorporated, designed to meet the needs of a wide range of applications. This high-performance component is engineered to provide a stable and reliable power supply solution in a compact, surface-mount package, making it an ideal choice for space-constrained designs.

Key Features

• High Efficiency: The AP3203MPTR-G1 boasts an excellent efficiency rate, which helps to minimize power loss during operation and extends battery life in portable applications.
• Adjustable Output Voltage: Users can set the output voltage to their desired level, providing flexibility across different use cases and compatibility with a variety of devices.
• Low Dropout: Its low dropout capability ensures that the converter maintains a stable output even when the input-to-output differential voltage is low.
• Thermal Protection: The built-in thermal protection feature prevents the device from overheating, enhancing its reliability and longevity.
• Overcurrent Protection: With overcurrent protection, the AP3203MPTR-G1 safeguards against excessive current that could potentially damage the circuit.

Applications

The AP3203MPTR-G1 is suitable for a diverse array of applications, including but not limited to:

• Portable devices
• Wireless communication equipment
• Power supply units
• Consumer electronics

Technical Specifications

Parameter Value Input Voltage Range 4.5V to 18V Output Voltage Range Adjustable Switching Frequency 340kHz Package TSOT-25 Operating Temperature -40°C to +85°C

The AP3203MPTR-G1 from Diodes Incorporated represents a reliable and efficient solution for designers looking to optimize their power management systems with a compact, feature-rich DC-DC converter.
