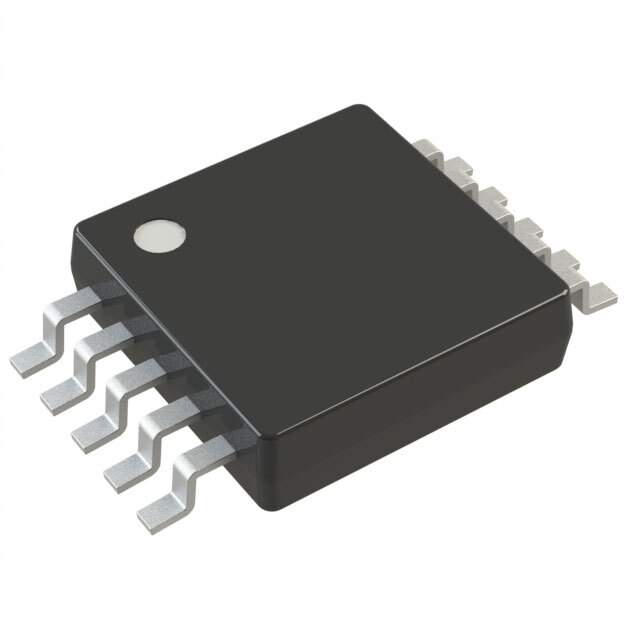

Diodes Incorporated AP3406AMM-ADJTRG1

The AP3406AMM-ADJTRG1 is a high-efficiency, adjustable output, current-mode, pulse-width modulation (PWM) synchronous buck (step-down) DC-DC converter from Diodes Incorporated. This compact and versatile component is designed to meet the stringent power requirements of modern portable electronic devices, such as smartphones, tablets, and other battery-powered gadgets.

With its input voltage range of 2.6V to 5.5V, the AP3406AMM-ADJTRG1 is perfectly suited for systems powered by single-cell lithium-ion batteries or other standard power supplies. The device's adjustable output voltage allows designers to tailor the output to the specific needs of their application, ensuring optimal performance and energy efficiency.

The AP3406AMM-ADJTRG1 boasts an impressive array of features that make it a top choice for power management solutions. It offers high efficiency, which can reach up to 92%, minimizing power loss and extending battery life. The converter operates at a fixed switching frequency of 1.4MHz, which allows the use of small, low-cost inductors and capacitors, resulting in a compact footprint on the PCB.

Protection features of this DC-DC converter include over-current protection (OCP), under-voltage lockout (UVLO), and thermal shutdown, safeguarding the device and the system from potential damage due to abnormal operating conditions. The AP3406AMM-ADJTRG1 also includes a power-good output indicator, which provides a real-time signal of the system's power status, enhancing system reliability.

The AP3406AMM-ADJTRG1 comes in a space-saving U-DFN3030-10 (Type B) package, making it an excellent choice for applications where board space is at a premium. Its small size, combined with its robust feature set, makes the AP3406AMM-ADJTRG1 an ideal solution for a wide range of portable and space-constrained applications.

In summary, Diodes Incorporated's AP3406AMM-ADJTRG1 is a high-performance, adjustable output DC-DC converter that offers efficiency, a broad input voltage range, and valuable protection features, all within a compact package. It stands out as a reliable and energy-efficient component for modern electronic designs.
