Product Overview: AP3513EMPTR-G1

The AP3513EMPTR-G1 is a high-performance, adjustable-frequency, synchronous buck converter from Diodes Incorporated, designed to deliver exceptional efficiency and power management for a wide range of applications. This compact, integrated circuit is engineered to provide a cost-effective solution for converting a higher voltage input to a lower voltage output with excellent power conversion rates.

Key Features

• Input Voltage Range: The device supports a wide input voltage range, typically from 4.5V to 18V, making it versatile for various power supply scenarios.
• Output Voltage: The output voltage is adjustable, which allows for a high level of flexibility in application design. This feature is particularly useful for designers looking to tailor the power supply to specific requirements.
• High Efficiency: With synchronous rectification, the AP3513EMPTR-G1 achieves high efficiency, which is crucial for minimizing heat generation and improving system reliability.
• Switching Frequency: The device operates at an adjustable switching frequency that can be set up to 1.5MHz via an external resistor. This high-frequency operation enables the use of smaller external components, reducing the overall footprint and cost of the power supply design.
• Protection Features: It includes a comprehensive suite of protection features such as over-current protection, over-temperature protection, and under-voltage lockout, ensuring the safety and longevity of both the converter and the end application.

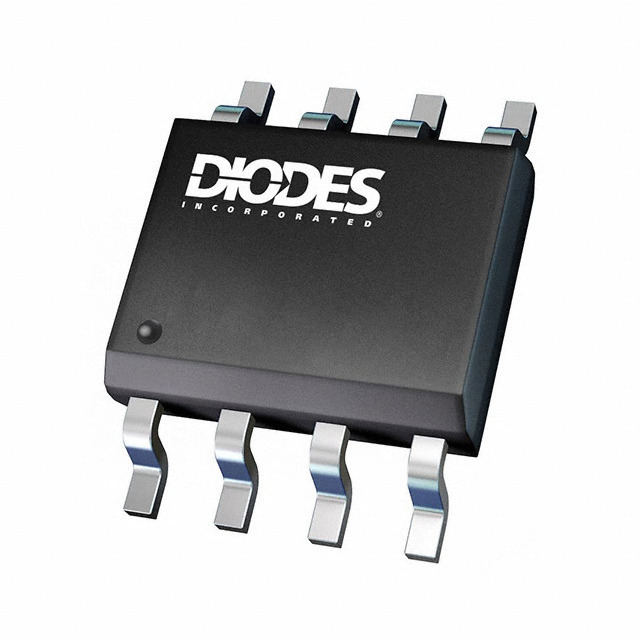

• Package: The AP3513EMPTR-G1 is available in a space-saving, environmentally friendly, RoHS-compliant MSOP-10EP package.

Applications

The AP3513EMPTR-G1 is suitable for a broad array of applications, including but not limited to:

• Consumer Electronics
• Telecommunications
• Networking Systems
• Computer Peripherals
• Industrial Equipment

With its combination of flexibility, efficiency, and protection features, the AP3513EMPTR-G1 from Diodes Incorporated stands out as an excellent choice for designers and engineers seeking a reliable and versatile power management solution.
