The AZ1117CH2-3.3TRG1 is a high-performance, low-dropout linear regulator offered by Diodes Incorporated, designed to deliver a continuous 1A of output current with a dropout voltage of typically 1.2V at full load. This regulator is particularly suitable for applications requiring a regulated 3.3V power supply with superior load regulation, line regulation, and thermal performance.

Key Features

• Output Voltage: Fixed 3.3V output with an accuracy of ±1% at room temperature and ±2% in all conditions, ensuring reliable performance for sensitive electronics.
• High Efficiency: Low dropout voltage (typically 1.2V at full load) minimizes power loss and improves efficiency, making it ideal for battery-powered devices.
• Current Capacity: Capable of delivering up to 1A of output current, suitable for a wide range of applications.
• Thermal Regulation: Excellent thermal performance with junction temperature range from -40°C to +125°C, allowing operation in diverse environments.

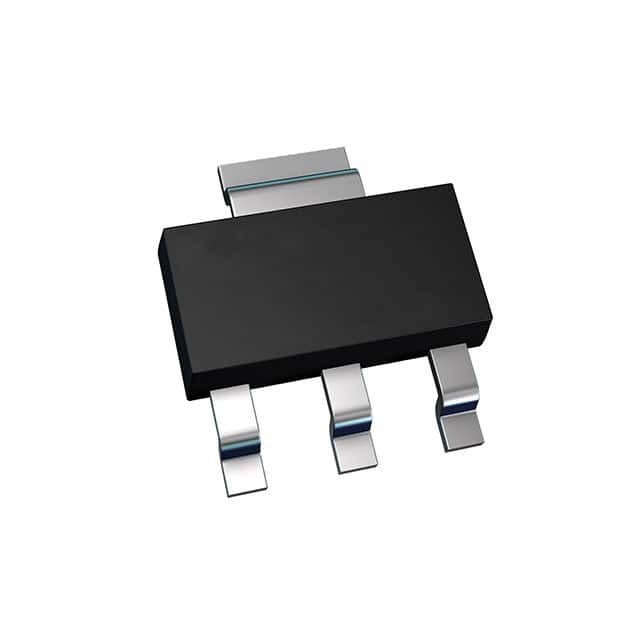

• Package: Available in a small footprint SOT-223 package, which is ideal for space-constrained applications.
• Protection Features: Includes built-in over-current protection, thermal shutdown, and output short-circuit protection for enhanced safety and reliability.

Applications

The AZ1117CH2-3.3TRG1 is versatile and can be used in a variety of applications, including:

• Consumer Electronics
• Computer Peripherals
• Networking Systems
• Industrial Equipment
• Battery-powered Devices

Quality and Reliability

Diodes Incorporated is known for its commitment to quality and reliability, and the AZ1117CH2-3.3TRG1 is no exception. It is designed to meet the high standards required by modern electronic devices, ensuring long-term stability and performance. The product is also RoHS compliant, reflecting the company's dedication to environmental responsibility.

Whether you are developing a new project or optimizing an existing one, the AZ1117CH2-3.3TRG1 from Diodes Incorporated is a reliable choice for your voltage regulation needs.
