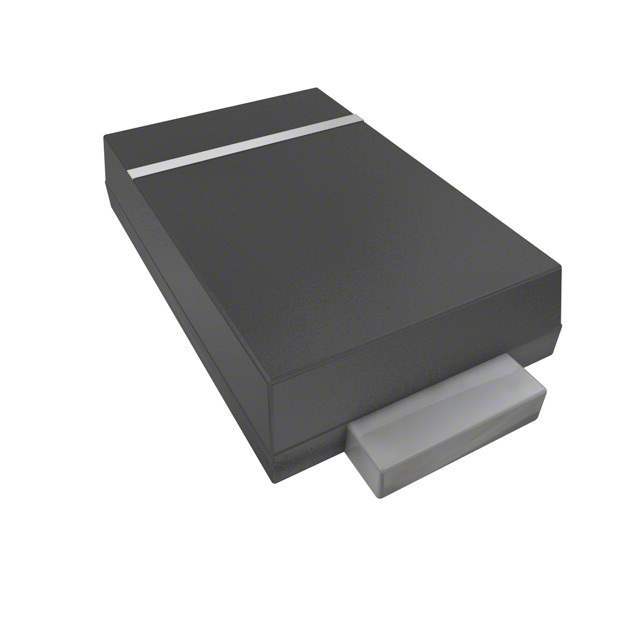

Same model may have multiple batches, images only for reference.
B160AF-13Diodes Incorporated
Same model may have multiple batches, images only for reference.

B160AF-13

Part No B160AF-13
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 1A SMAF
Datasheet
B160AF-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Part Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 650 mV @ 1 A
Current - Reverse Leakage @ Vr 100 µA @ 60 V
Capacitance @ Vr, F 45pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Operating Temperature - Junction -55°C ~ 150°C
Supplier Device Package SMAF
Win Source Part Number WS1309345-B160AF-13
Ultra Librarian 3D Model Ultra Librarian B160AF-13 CAD Model

Description

The Schottky rectifier providing low VF and excellent reverse leakage stability at high temperatures, this device is ideal for use in general rectification applications such as:
● Boost Diode
● Blocking Diode
● Recirculating Diode
