The BAS70-7-F from Diodes Incorporated is a high-performance Schottky barrier diode designed for surface mount applications. This diode is known for its low forward voltage drop and fast switching capabilities, making it an excellent choice for high-efficiency power management systems and signal switching applications.

Key Features

• Low Forward Voltage Drop: The BAS70-7-F features a low forward voltage drop, which enhances system efficiency by reducing power loss during operation.
• Fast Switching Speed: With its fast switching action, this diode is suitable for high-frequency applications, offering improved performance for switching power supplies and other high-speed circuits.

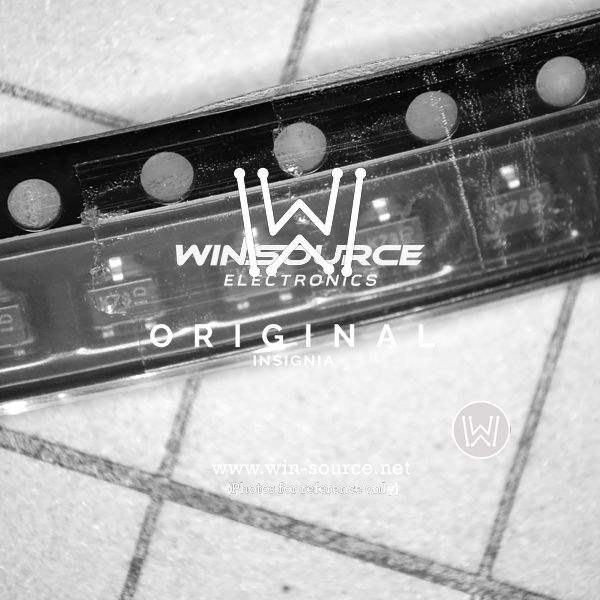

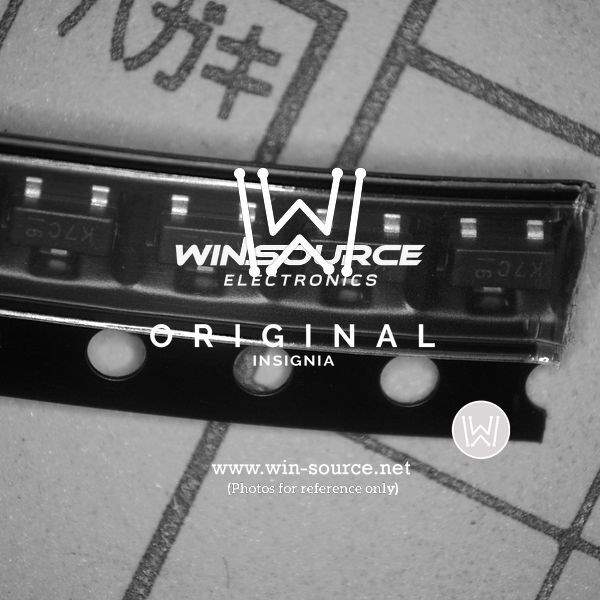

• Surface Mount Package: The diode comes in an SOT-23 package, which is ideal for automated assembly processes and helps in saving PCB space.
• High Current Capability: It offers a continuous forward current of 70 mA, allowing it to handle moderate levels of current in compact circuit designs.
• Low Capacitance: The device has low capacitance, which is beneficial for high-speed and high-frequency applications where signal integrity is crucial.

Applications

The BAS70-7-F is versatile and can be used in a variety of applications, including:

• Switching power supplies
• DC-DC converters
• Reverse polarity protection
• High-frequency rectification
• Charge pump circuits
• Signal demodulation

Specifications

This Schottky barrier diode is characterized by its robustness and reliability, with specifications that include:

• Reverse Voltage: 70V
• Forward Current: 70mA
• Power Dissipation: 200mW
• Operating Temperature Range: -55°C to +150°C

The BAS70-7-F is RoHS compliant and halogen-free, ensuring that it meets environmental standards and is suitable for use in green products. With its combination of efficiency, speed, and compact form factor, the BAS70-7-F from Diodes Incorporated is an excellent choice for designers looking to optimize their high-speed circuit designs.
