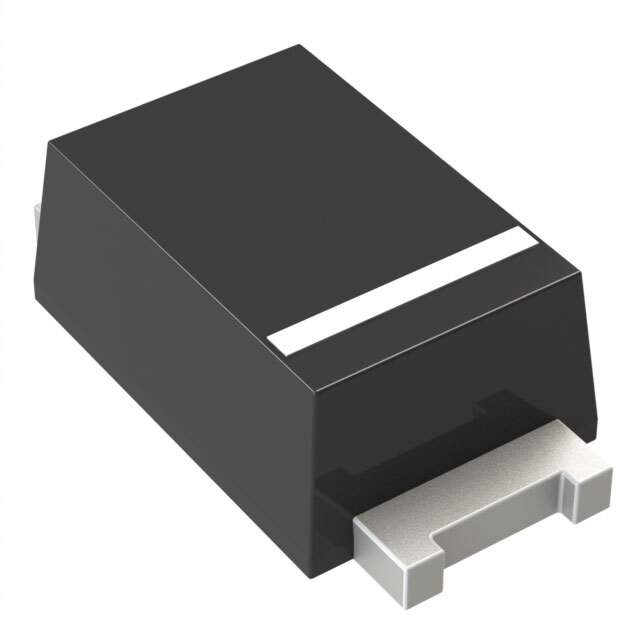

BZT52HC9V1WF-7

Part No BZT52HC9V1WF-7
Manufacturer Diodes Incorporated
Catalog Diodes - Zener - Single
Description DIODE ZENER 9.1V SOD123F T&R 3K / Zener Diode 9.1 V 375 mW ±5.49% Surface Mount SOD-123F
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Diodes Incorporated
Series Automotive, AEC-Q101
Package Tape & Reel
Voltage - Zener (Nom) (Vz) 9.1 V
Tolerance ±5.49%
Power - Max 375 mW
Impedance (Max) (Zzt) 10 Ohms
Current - Reverse Leakage @ Vr 500 nA @ 6 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating -65°C ~ 150°C
Mounting SMD (SMT)
Package / Case SOD-123F
Supplier Device Package SOD-123F
Base Product Number BZT52
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Other Names BZT52HC9V1WF-7-ND,BZT52HC9V1WF-7DITR,BZT52HC9V1WF-7DIDKR,BZT52HC9V1WF-7DICT
Standard Package 3,000
Win Source Part Number 977239-BZT52HC9V1WF-7
Ultra Librarian 3D Model Ultra Librarian BZT52HC9V1WF-7 CAD Model

Description

Product Overview: BZT52HC9V1WF-7 from Diodes Incorporated

The BZT52HC9V1WF-7 is a high-performance Zener diode, meticulously engineered by Diodes Incorporated to provide precision voltage regulation in a wide array of electronic applications. Designed with advanced semiconductor technology, this compact surface-mount component is a perfect fit for space-constrained applications that require accurate voltage clamping or reference voltages.

Key Features

  • Regulation: Offers a nominal Zener voltage of 9.1V, enabling it to stabilize voltage levels in various circuits.
  • Power Dissipation: With a power dissipation of 410mW, it can handle moderate power levels, making it suitable for a range of electronic devices.
  • High Efficiency: The BZT52HC9V1WF-7 boasts a high surge current capability, ensuring reliable performance under transient conditions.
  • Package: Comes in the compact SOD-123F package, which is optimized for automated assembly processes and saves valuable PCB space.
  • Temperature Range: Capable of operating within a wide temperature range from -55°C to +150°C, making it suitable for harsh environments.

Applications

The versatility of the BZT52HC9V1WF-7 Zener diode makes it an ideal choice for a multitude of applications, including:

  • Power management circuits
  • Voltage regulation modules
  • Consumer electronics
  • Telecommunication devices
  • Portable and battery-powered equipment
  • Industrial controls

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the BZT52HC9V1WF-7 is no exception. It is built to meet the rigorous standards of the industry, ensuring both high reliability and performance. Furthermore, it is RoHS compliant, demonstrating Diodes Incorporated's dedication to environmental responsibility.

Conclusion

Whether you're designing a sophisticated industrial system or a simple consumer electronic device, the BZT52HC9V1WF-7 from Diodes Incorporated offers a reliable and efficient solution for your voltage regulation needs. Its combination of precision, power handling, and compact form factor makes it a valuable addition to any electronic project.
