Diodes Incorporated DMN2005DLP4K-7 MOSFET Overview

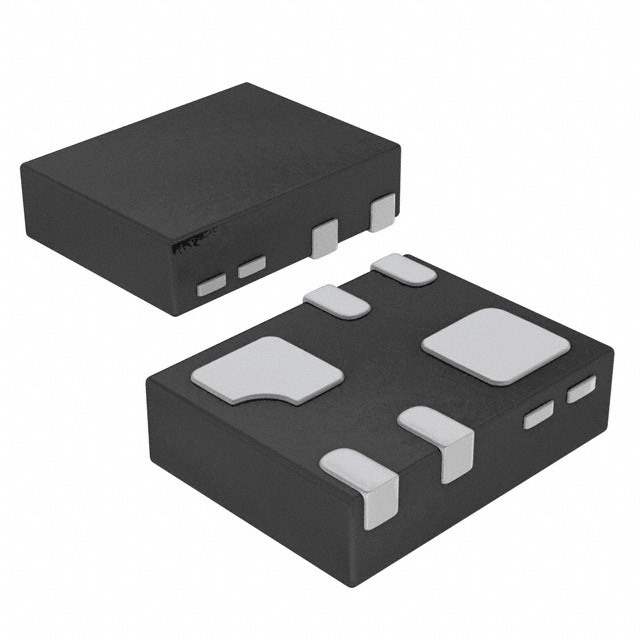

The DMN2005DLP4K-7 from Diodes Incorporated is a high-performance, N-Channel enhancement mode field-effect transistor (MOSFET) designed for a wide range of applications. Packaged in an ultra-compact and space-saving DFN1006-3 (also known as DLP4K) package, this MOSFET is an ideal choice for portable and power-sensitive devices where efficiency and size are critical.

Key Features

• Low On-Resistance: The DMN2005DLP4K-7 boasts a very low on-resistance (R_DS(on)), which translates to reduced conduction losses and improved overall efficiency in circuit operations.
• High-Speed Switching: This MOSFET is designed for fast switching applications, which is essential for reducing switching losses and improving the performance of power management circuits.
• Low Threshold Voltage: The low gate threshold voltage ensures that the MOSFET can be easily driven by low-voltage control signals, making it suitable for low-voltage applications.
• Low Input Capacitance: With a low input capacitance, this device exhibits reduced drive power requirements and faster switching speeds.

Electrical Characteristics

• Drain-Source Voltage (V_DS): 20V
• Continuous Drain Current (I_D): 1.3A
• Power Dissipation (P_D): 0.5W
• Gate-Source Voltage (V_GS): ±8V
• Static Drain-Source On-Resistance (R_DS(on)): 0.075Ω at V_GS = 4.5V

Applications

The DMN2005DLP4K-7 is suited for a variety of applications, including but not limited to:

• Load/Power Switching
• Battery Management Systems
• DC-DC Converters
• Power Management for Portable Devices
• Motor Drives and Controllers

With its compact footprint and robust electrical characteristics, the DMN2005DLP4K-7 from Diodes Incorporated is a versatile component that enhances the performance and efficiency of electronic designs. Whether it's for consumer electronics, automotive systems, or industrial controls, this MOSFET is engineered to meet the rigorous demands of modern circuitry.
