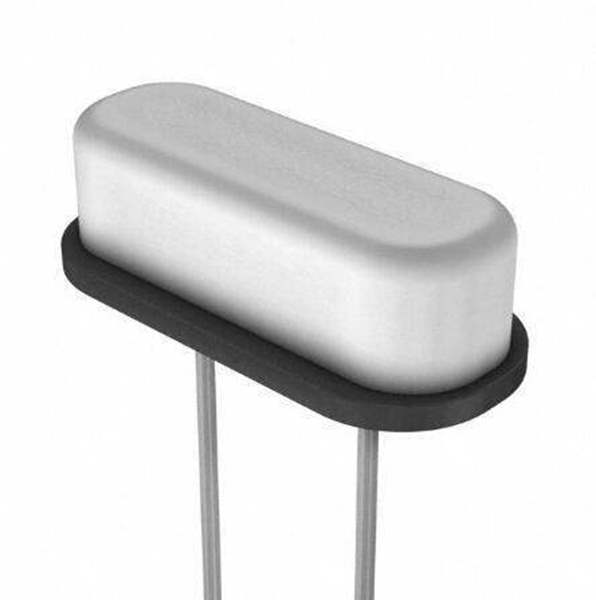

GB1600048Diodes Incorporated
Same model may have multiple batches, images only for reference.

GB1600048

Part No GB1600048
Manufacturer Diodes Incorporated
Catalog Crystals
Description CRYSTAL 16.0000MHZ 18PF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Diodes Incorporated
Category Crystals, Oscillators, Resonators Crystals
Packaging  Tape & Reel (TR)
Part Status Active
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Win Source Part Number WS1305560-GB1600048
Ultra Librarian 3D Model Ultra Librarian GB1600048 CAD Model

Description

Product Features
• Standard: 3.5mm Max height GB Series
• Low profile: 2.5mm Max height GG Series
• AT or BT cut performance
• Resistance weld seal
• Pb-free and RoHS/Green compliant

You May Also Be Interested in

Picture of MC-146 32.7680KB-AG3: ROHS
MC-146 32.7680KB-AG3: ROHS
Epson Electronics America Inc-Semiconductor Div
Need more? Email Us
CC7V-T1A-32.768KHZ-12.5PF-20PPM-TA-QC Micro Crystal AG – Price, Stock & Datasheet
CC7V-T1A-32.768KHZ-12.5PF-20PPM-TA-QC
Micro Crystal AG
CRYSTAL 32.7680KHZ 12.5PF SMD
Lowest to $0.7771
Picture of MC-146 32.7680KA-AG: ROHS
MC-146 32.7680KA-AG: ROHS
Epson Electronics America Inc-Semiconductor Div
Need more? Email Us
Picture of MC-146 32.7680KA-E5:PURE SN
MC-146 32.7680KA-E5:PURE SN
Epson Electronics America Inc-Semiconductor Div
Need more? Email Us

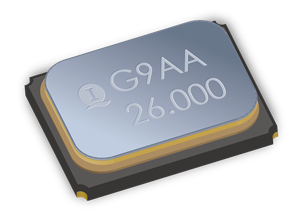

4YAA24000123TF50Q3 Interquip Electronics – Price, Stock & Datasheet
