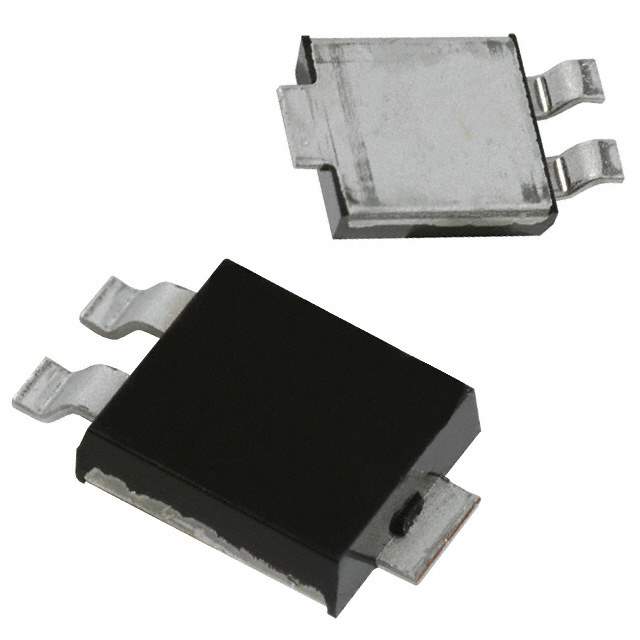

Product Overview: MBRM360-13-F - Schottky Barrier Rectifier

The MBRM360-13-F from Diodes Incorporated is a highly efficient, surface-mount Schottky Barrier Rectifier designed for applications requiring low voltage drop and high current capability. This rectifier is housed in a compact, flat lead, low-profile package which makes it suitable for use in space-constrained applications.

Key Features

• Voltage Rating: The MBRM360-13-F has a maximum repetitive peak reverse voltage of 60V, making it suitable for a variety of DC power supplies and other voltage rectification applications.
• Current Capacity: With a high forward surge current of 100A, this device is capable of handling high current spikes without damage, ensuring reliability and longevity in harsh conditions.
• Low Power Loss: Its low forward voltage drop minimizes power loss, providing higher efficiency in your circuit designs.
• Thermal Performance: The device features a typical junction capacitance of 110pF, contributing to its excellent thermal performance and making it ideal for high-frequency applications.
• Package: The MBRM360-13-F comes in a compact SOD-123FL package, which is designed for automated assembly and is compatible with standard SMT manufacturing processes.

Applications

The MBRM360-13-F is versatile and can be used across a wide range of applications. Its primary uses include power supply rectification in consumer electronics, LED lighting, automotive applications, battery charging circuits, and power management systems. The device's small footprint and high efficiency also make it an excellent choice for portable and compact electronic devices.

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the MBRM360-13-F is no exception. It is manufactured to meet high industry standards, ensuring reliability and performance. The product is also RoHS compliant, adhering to environmental regulations and minimizing the use of hazardous substances in electronics.
