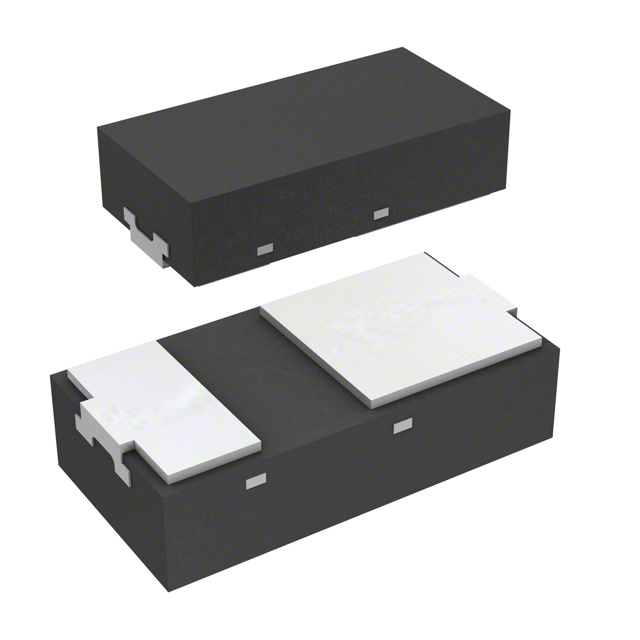

Same model may have multiple batches, images only for reference.
PMEG2015EPK-QYL Nexperia USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PMEG2015EPK-QYL

Part No PMEG2015EPK-QYL
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description PMEG2015EPK-Q/SOD1608/SOD1608
Datasheet
PMEG2015EPK-QYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 420 mV @ 1.5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 900 µA @ 20 V
Capacitance @ Vr, F 105pF @ 1V, 1MHz
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Package / Case 2-XDFN
Supplier Device Package DFN1608D-2
Operating Temperature - Junction 150°C
Ultra Librarian 3D Model Ultra Librarian PMEG2015EPK-QYL CAD Model
