The PI5A3158ZAEX from Diodes Incorporated is a cutting-edge, high-performance Single-Pole Double-Throw (SPDT) analog switch designed to deliver a seamless integration of analog signal switching into a wide array of electronic applications. This device is notable for its low on-resistance and low crosstalk, making it an ideal choice for precision applications requiring minimal signal distortion.

Key Features

• Low On-Resistance: The PI5A3158ZAEX boasts an exceptionally low on-resistance, typically at 0.8Ω, which ensures minimal voltage drop and power loss across the switch, thereby maintaining signal integrity.
• Wide Voltage Range: It operates over a broad voltage range of 1.65V to 5.5V, allowing for flexible usage in various circuit designs and compatibility with both low-voltage and standard logic level systems.
• High-Speed Switching: Fast switching speeds are a hallmark of this device, thereby reducing transition times and improving performance in time-sensitive applications.
• Low Power Consumption: The switch is optimized for low power consumption, making it suitable for battery-powered devices where power efficiency is critical.
• Break-Before-Make Switching: It features break-before-make switching configuration which prevents momentary short circuits when switching between signals.

Applications

The versatility of the PI5A3158ZAEX allows it to be integrated into a multitude of applications, such as:

• Audio and Video Signal Routing
• Data Acquisition Systems
• Communication Systems
• Portable Electronic Devices
• Test and Measurement Equipment

Package and Quality

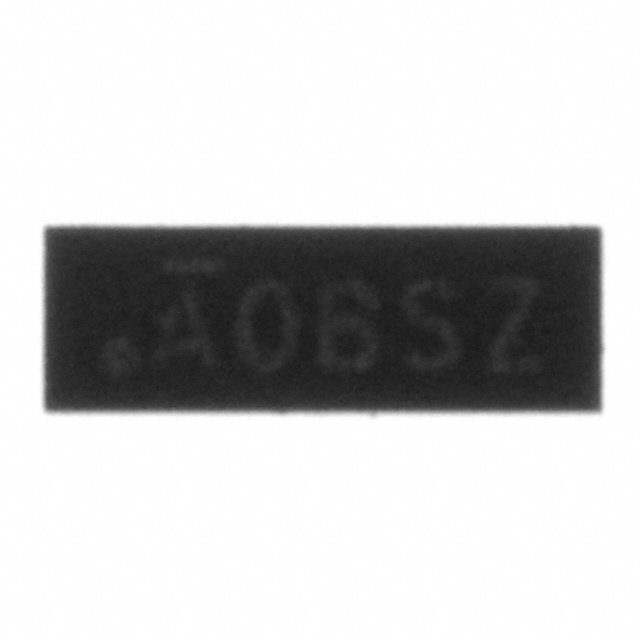

Encased in a compact X2-DFN2020-6 package, the PI5A3158ZAEX is designed for space-constrained applications. The product adheres to the rigorous quality standards set by Diodes Incorporated, ensuring high reliability and performance consistency across various conditions.

Conclusion

The PI5A3158ZAEX from Diodes Incorporated represents a versatile and reliable solution for analog signal switching. Its low on-resistance, wide operating voltage range, and high-speed operation make it a top choice for designers looking to enhance their electronic systems with efficient and precise signal routing capabilities.
