Product Overview: Diodes Incorporated PI5C6800CQE

The PI5C6800CQE is a high-performance, low-power CMOS QuickSwitch® product designed by Diodes Incorporated, a leading manufacturer and supplier of high-quality semiconductor products. This device is part of the QuickSwitch® series, which are known for their ability to provide near-zero propagation delay and high-bandwidth switching characteristics.

The PI5C6800CQE is an 8-bit bus switch that features a bus-enable input to control the switch. This enables the user to turn the connection between two buses on or off, making it an ideal choice for applications that require efficient data flow control. The product operates from a single power supply ranging from 4.5V to 5.5V, which is suitable for interfacing with 5V TTL logic.

With its low ON resistance, the PI5C6800CQE ensures minimal signal distortion and provides excellent signal integrity. The device is characterized for operation from -40°C to +85°C, making it reliable for use in a wide range of environmental conditions. Furthermore, its low power consumption makes it an energy-efficient solution for modern electronic systems.

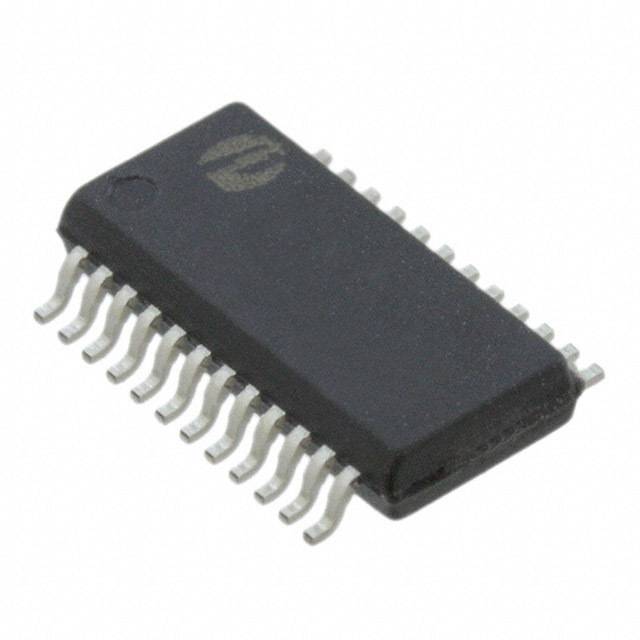

The PI5C6800CQE comes in a space-saving 24-pin QSOP package, which is beneficial for designs where board space is at a premium. Its packaging is also RoHS compliant, adhering to environmental standards and regulations.

This bus switch is suitable for various applications, including hot-swapping, power management, and server/workstation applications. It is also used in systems that require backplane or motherboard switching, as it can effectively reduce capacitive loading when inactive.

In summary, the Diodes Incorporated PI5C6800CQE offers an optimal combination of high-speed switching, low power consumption, and reliable performance, making it an excellent choice for designers looking to improve the efficiency and functionality of their digital systems.

For detailed specifications and application notes, customers are encouraged to consult the official datasheets and product documentation available from Diodes Incorporated.
