The SBM540-13-F is a high-performance Schottky barrier rectifier designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors. This rectifier is engineered for applications where efficiency, reliability, and compact design are critical. It is commonly used in power management tasks, including DC-DC converters, free-wheeling diodes, and reverse battery protection circuits.

Key Features

• Voltage Rating: The SBM540-13-F is capable of withstanding repetitive peak reverse voltages (VRRM) up to 40 volts, making it suitable for a variety of low voltage applications.
• Current Handling: With an average rectified forward current (IF(AV)) of 5 amps, this component can handle moderate power requirements efficiently.
• Low Forward Voltage Drop: The low forward voltage drop (VF) characteristic of this Schottky barrier rectifier ensures higher efficiency and reduced thermal stress during operation.
• High Surge Capability: It features a high surge current capability, which is crucial for handling the surge currents that may occur during the initial power-up or during transient conditions.
• Thermal Performance: The SBM540-13-F boasts excellent thermal performance thanks to its power package, allowing for better heat dissipation and reliability over a wide temperature range.

Package and Mounting

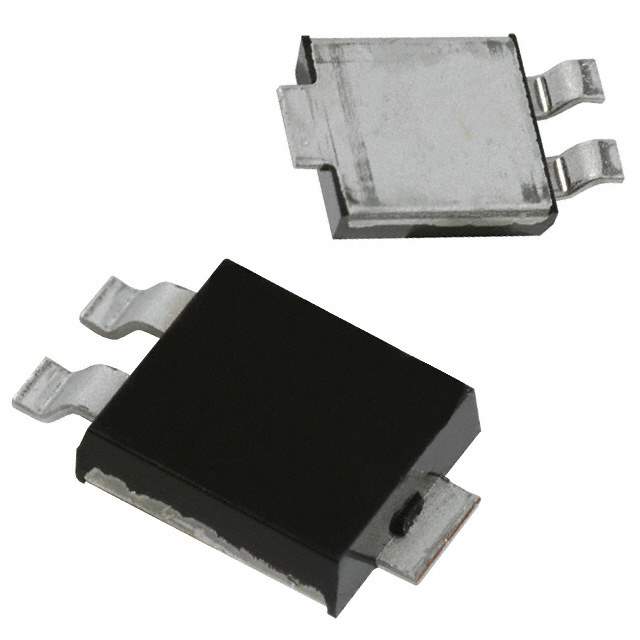

The device comes in a low-profile, surface-mount SMB package, which is ideal for automated assembly processes and space-constrained applications. The package is also RoHS compliant, reflecting Diodes Incorporated's commitment to environmental sustainability.

Applications

Due to its versatility and electrical characteristics, the SBM540-13-F is suitable for a broad range of applications, including:

• Power supply units
• Automotive systems
• Telecommunications equipment
• Portable devices and battery charging
• Industrial and commercial systems with power management needs

Conclusion

The SBM540-13-F Schottky barrier rectifier from Diodes Incorporated stands out as a reliable and efficient solution for modern electronic applications. Its combination of low forward voltage drop, high surge capability, and excellent thermal performance makes it an ideal choice for designers looking to optimize their power management systems.
