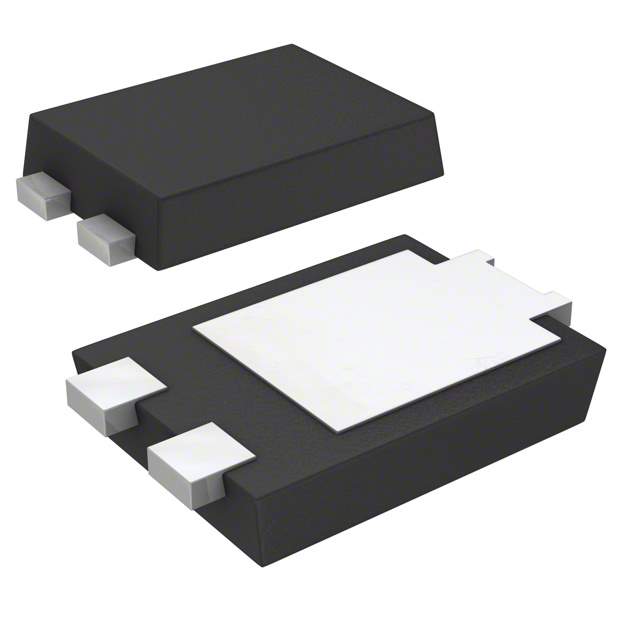

SBR12A45SP5-13

Part No SBR12A45SP5-13
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE SBR 45V 12A POWERDI5
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Active
Diode Type Super Barrier
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Max) @ If 600mV @ 12A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 300μA @ 45V
Capacitance @ Vr, F 1000pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package PowerDI 5
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 064074-SBR12A45SP5-13
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SBR12A45SP5-13 CAD Model

Description

Introducing the SBR12A45SP5-13 from Diodes Incorporated

The SBR12A45SP5-13 is a state-of-the-art power rectifier from the trusted manufacturer, Diodes Incorporated. This product is designed to meet the demanding requirements of today's high-efficiency power conversion systems. With its Super Barrier Rectifier (SBR) technology, this component offers superior performance compared to traditional Schottky diodes.

Key Features:

  • Low Forward Voltage Drop (VF): The SBR12A45SP5-13 boasts a low VF, which significantly reduces power loss and enhances system efficiency, making it an ideal choice for power supply applications.
  • High Surge Capability: This rectifier is engineered to withstand high surge currents, providing robust protection against transient voltage spikes and enhancing the reliability of the end application.
  • Low Leakage Current: With its minimal leakage current, the SBR12A45SP5-13 ensures minimal power waste when in the off-state, contributing to the overall energy-saving features of the device.
  • High-Temperature Operation: The device is capable of operating at high temperatures, making it suitable for challenging thermal environments without compromising performance.

Applications:

The SBR12A45SP5-13 is versatile and can be used in a wide range of applications. Its main uses include:

  • Power Management Systems
  • DC-DC Converters
  • Free-Wheeling Diodes in Inverters
  • Power Factor Correction (PFC) Circuits
  • LED Lighting

Package and Compliance:

The device comes in a PowerDI5060-8 package, which is not only compact but also offers excellent thermal performance. Compliant with RoHS and Halogen-Free standards, the SBR12A45SP5-13 is an environmentally friendly choice, reflecting Diodes Incorporated's commitment to sustainable product development.

Conclusion:

With its exceptional efficiency, reliability, and versatility, the SBR12A45SP5-13 from Diodes Incorporated stands out as a top choice for engineers and designers looking to enhance the performance of their power conversion systems. Whether it's for industrial, commercial, or consumer applications, this SBR is engineered to deliver optimal results while maintaining energy efficiency and durability.
