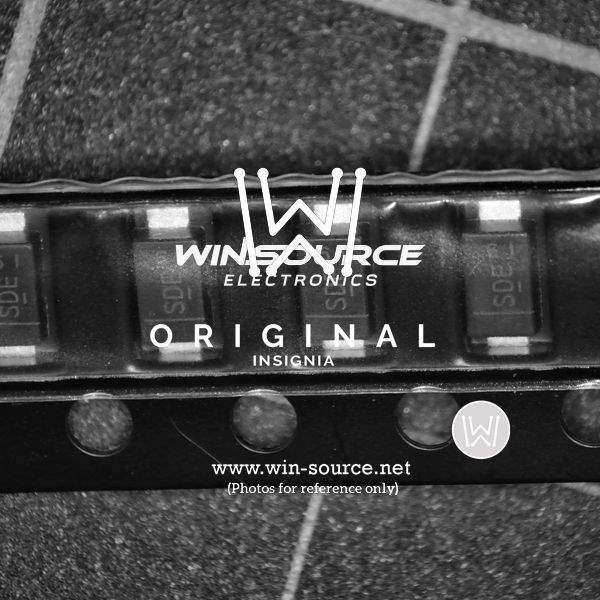

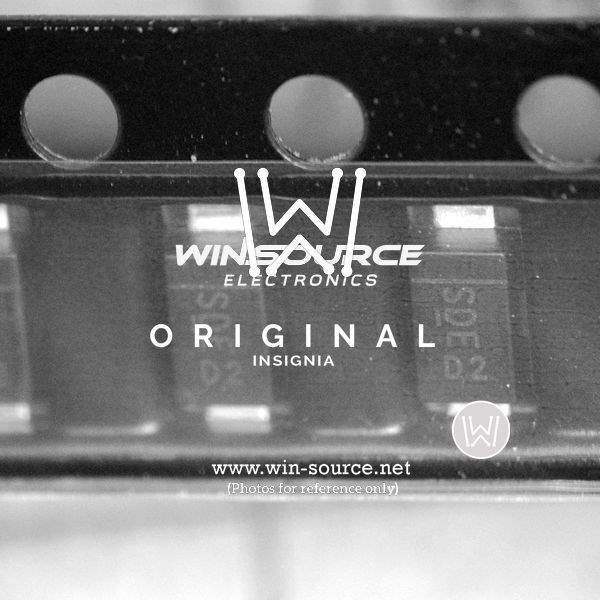

Product Overview: SBR1U400P1-7

The SBR1U400P1-7 is a state-of-the-art Super Barrier Rectifier (SBR) from Diodes Incorporated, designed to deliver high-performance and reliability for a wide range of applications. This rectifier is a perfect solution for designers looking for a component that offers low forward voltage drop, high surge current capability, and superior thermal performance.

Key Features

• Low Power Loss: The SBR1U400P1-7 boasts a low forward voltage drop, significantly reducing power loss and improving efficiency, making it ideal for high-efficiency power supplies.
• High Surge Capability: With its robust surge current capability, this rectifier can handle high transient currents, ensuring reliable performance in applications subject to surge conditions.
• Thermal Performance: The SBR1U400P1-7 is designed to operate effectively over a wide temperature range, thanks to its excellent thermal characteristics, which also contribute to a longer operational lifespan.
• Compact Package: Encased in a small PowerDI123 package, the SBR1U400P1-7 is optimized for space-constrained applications without compromising on power handling and thermal efficiency.
• Lead-Free and RoHS Compliant: This product is environmentally friendly, adhering to the Restriction of Hazardous Substances (RoHS) directive, making it suitable for use in green products.

Applications

The SBR1U400P1-7 is versatile and can be used in various applications, including:

• LED Lighting
• Switch Mode Power Supplies (SMPS)
• Power Over Ethernet (PoE) Applications
• Reverse Voltage Protection
• Freewheeling Diodes
• DC/DC Converters

Technical Specifications

The SBR1U400P1-7 comes with impressive technical specifications, including a maximum average rectified current of 1A, a peak repetitive reverse voltage of 40V, and a maximum operating junction temperature range from -55°C to +150°C. Its fast switching capability ensures minimal power loss and reduced heat generation during operation.

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products. The SBR1U400P1-7 has undergone rigorous testing to ensure it meets the highest standards of reliability and performance under various conditions. Customers can trust this SBR to deliver consistent performance and durability for their critical applications.
