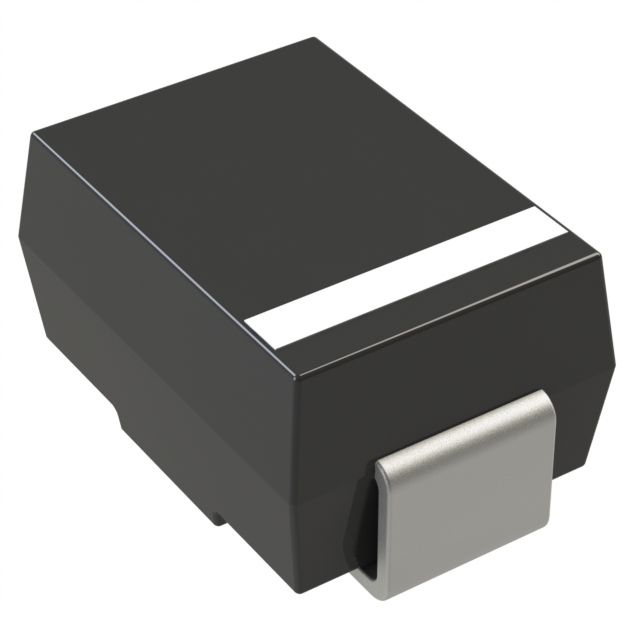

Same model may have multiple batches, images only for reference.
SMAJ90CA-13-F Diodes Incorporated – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMAJ90CA-13-F

Part No SMAJ90CA-13-F
Manufacturer Diodes Incorporated
Catalog TVS - Diodes
Description TVS DIODE 90VWM 146VC SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionTransient Voltage Suppressors (TVS)TVS Diodes
Mfr Diodes Incorporated
Series SMAJ
Part Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 90V
Voltage - Breakdown (Min) 100V
Voltage - Clamping (Max) @ Ipp 146V
Current - Peak Pulse (10/1000μs) 2.7A
Power - Peak Pulse 400W
Power Line Protection No
Operating Temperature -55°C ~ 150°C (TJ)
Grade Automotive
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA
Ultra Librarian 3D Model Ultra Librarian SMAJ90CA-13-F CAD Model
