Same model may have multiple batches, images only for reference.

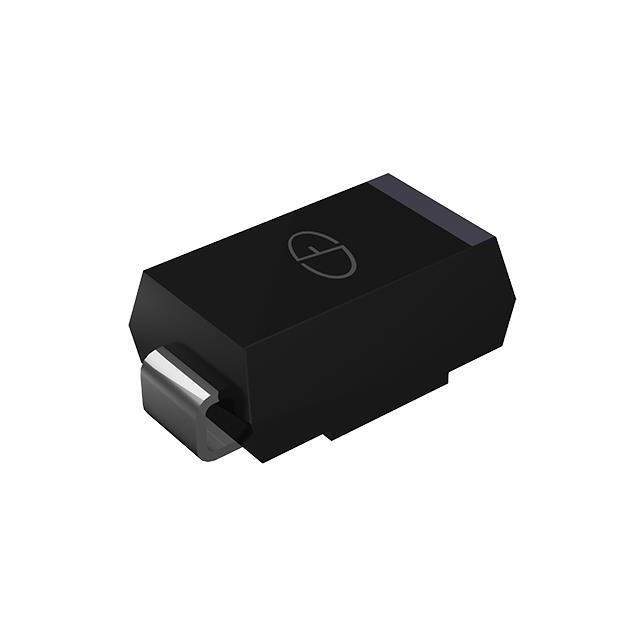

3.0SMCJ54A Real Image
Same model may have multiple batches, images only for reference.

3.0SMCJ54A

Part No 3.0SMCJ54A
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVSDIODE,SMC,54V,3000W,UNI  /  87.1V Clamp 34.4A Ipp Tvs Diode Surface Mount SMC/DO-214AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Diotec Semiconductor
Package Strip
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 54V
Voltage - Breakdown (Min) 60V
Voltage - Clamping (Max) @ Ipp 87.1V
Current - Peak Pulse (10/1000µs) 34.4A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package SMC/DO-214AB
Other Names 2721-3.0SMCJ54A
Standard Package 30
Win Source Part Number 1037885-3.0SMCJ54A
Ultra Librarian 3D Model Ultra Librarian 3.0SMCJ54A CAD Model

Description

The 3.0SMCJ54A is a unidirectional Zener TVS diode designed to protect electronic devices from voltage transients.

  • Type: Unidirectional Zener TVS diode
  • Application: Protect electronic devices from voltage transients
  • Reverse Standoff Voltage: 54V
  • Breakdown Voltage: 60V
  • Maximum Clamping Voltage @ Peak Pulse Current: 87.1V
  • Peak Pulse Power Rating: 3kW
  • Peak Pulse Current: 34.4A with a 10/1000µs waveform
  • Application: General-purpose applications
  • Package: SMC/DO-214AB
  • Operating Temperature: -50°C to 150°C (TJ)
  • Manufacturer: Diotec Semiconductor
