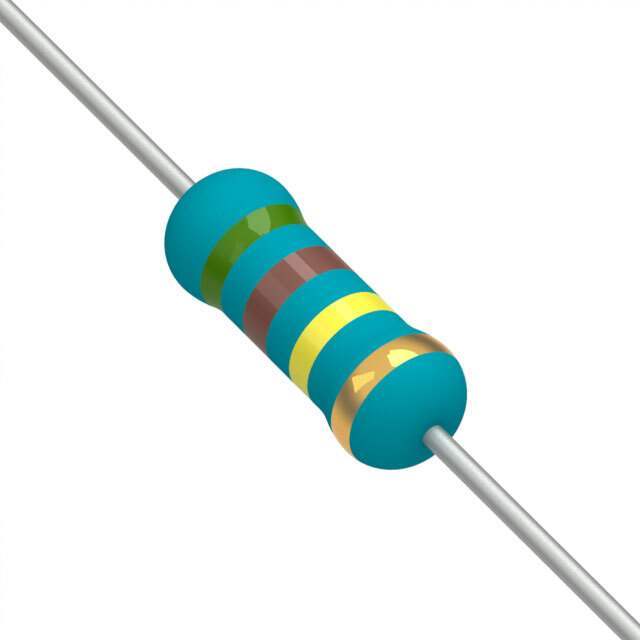

Same model may have multiple batches, images only for reference.
VR37000005103JR500 Vishay
Same model may have multiple batches, images only for reference.

VR37000005103JR500

Part No VR37000005103JR500
Manufacturers Draloric , Vishay
Catalog Through Hole Resistors
Description RES 510 KOHM 1/2W 5% AXIAL
Datasheet
VR37000005103JR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307808-VR37000005103JR500
Manufacturer Vishay Beyschlag/Draloric/BC Components
Category Resistors> Through Hole Resistors
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Resistance (Ohms) 510 kOhms
Tolerance (+ or -) ±5%
Power (Watts) 0.5W, 1/2W
Package / Case Axial
Size / Dimension 0.157" Dia x 0.354" L (4.00mm x 9.00mm)
Supplier Device Package Axial
Ultra Librarian 3D Model Ultra Librarian VR37000005103JR500 CAD Model

Description

A metal glazed film is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned electrolytic copper wires are welded to the end-caps. The resistors are coated with a light blue lacquer which provides electrical, mechanical, and climatic protection. This coating is not resistant to aggressive fluxes and cleaning solvents. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.
