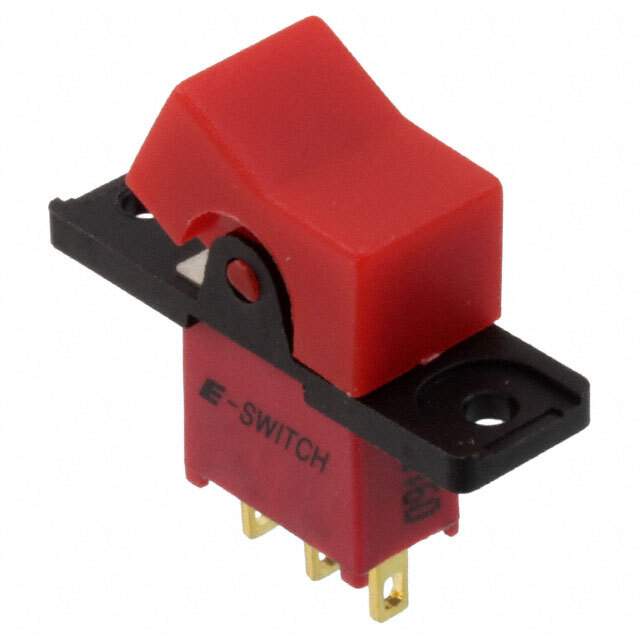

300AWSP1R1REDM1RE Real Image
Same model may have multiple batches, images only for reference.

300AWSP1R1REDM1RE

Part No 300AWSP1R1REDM1RE
Manufacturer E-Switch
Catalog Rocker Switches
Description SWITCH ROCKER SPDT 0.4VA 20V  /  Rocker Switch SPDT 0.4VA (AC/DC) 20 V Panel Mount, Flange
Datasheet
300AWSP1R1REDM1RE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr E-Switch
Series 300A
Package Bulk
Mounting Type Panel Mount, Flange
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Concave (Standard V)
Color - Actuator/Cap Red
Actuator Marking No Marking
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Rectangular - 13.14mm x 7.20mm
Temperature Range - Operating -30°C ~ 85°C
Electrical Life 30,000 Cycles
Base Product Number 300AWSP1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names -300AWSP1R1REDM1RE
Standard Package 25
Win Source Part Number 1056844-300AWSP1R1REDM1RE
Ultra Librarian 3D Model Ultra Librarian 300AWSP1R1REDM1RE CAD Model

Description

The E-Switch 1056844-300AWSP1R1REDM1RE is a panel mount, flange switch with a solder lug termination style.

  • Mounting: Panel Mount, Flange
  • Termination Style: Solder Lug
  • Voltage Rating: 20V (AC/DC)
  • Current Rating: 0.4VA (AC/DC)
  • Switch Function: On-On
  • Circuit: SPDT
  • Actuator Type: Concave (Standard V)
  • Actuator/Cap Color: Red with no marking
  • Ingress Protection: IP67 (dust tight, waterproof)
  • Electrical Life: 30,000 cycles
  • Operating Temperature: -30°C to 85°C
