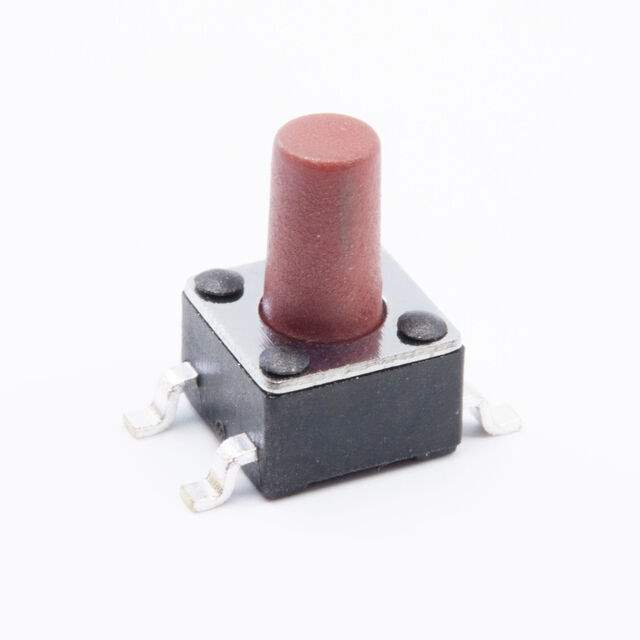

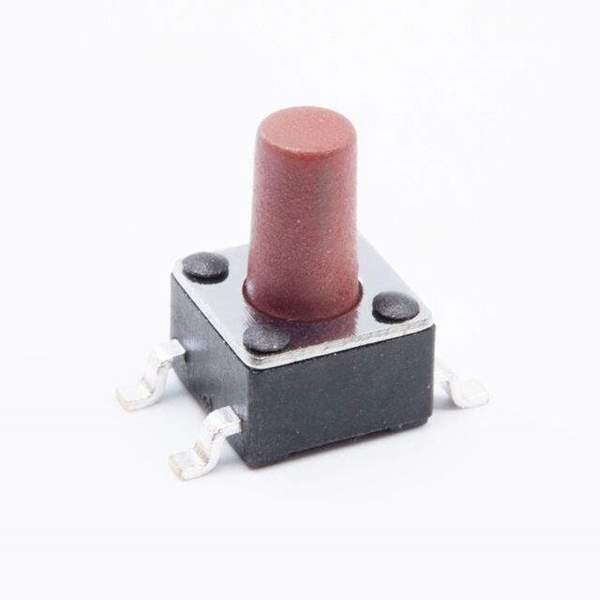

TL3305AF260QG

Part No TL3305AF260QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches> Tactile Switches
Manufacturer E-Switch
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 3.80mm
Ultra Librarian 3D Model Ultra Librarian TL3305AF260QG CAD Model

Description

  • Ultra-miniature 4.5 x 4.5mm
  • Multiple actuator options
  • Surface mount
  • Multiple operating force options
