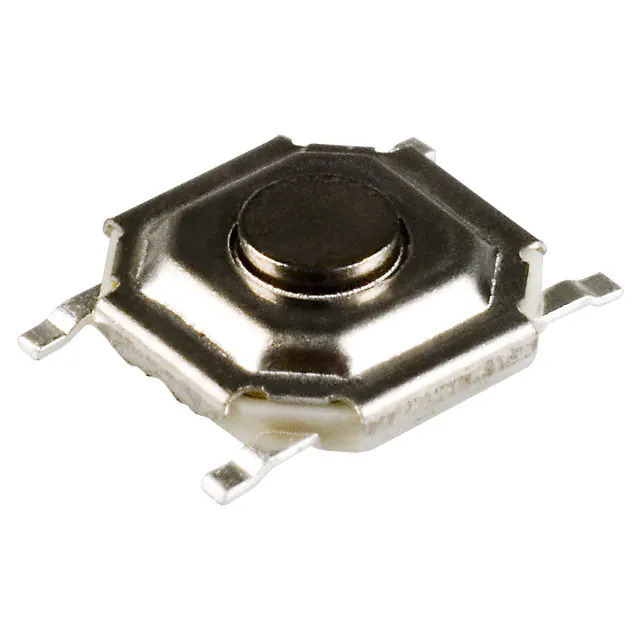

TL3342F450QG E-Switch
Same model may have multiple batches, images only for reference.

TL3342F450QG

Part No TL3342F450QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
TL3342F450QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL3342
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 1.54mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 4.90mm x 4.90mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 450gf
Ingress Protection -
Features -
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyphenylene Sulfide (PPS)
Switch Travel -
Mechanical Life 100,000 Cycles
Base Product Number TL3342
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376471-TL3342F450QG
Ultra Librarian 3D Model Ultra Librarian TL3342F450QG CAD Model

Description

The TL3342F450QG tactile switch by E-Switch is a reliable and durable electronic component.

  • Mounting Type: Surface Mount
  • Size: 4.90mm x 4.90mm
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Operating Force: 450gf
  • Contact Rating: 0.05A @ 12VDC
  • Mechanical Life: 100,000 Cycles
