Same model may have multiple batches, images only for reference.

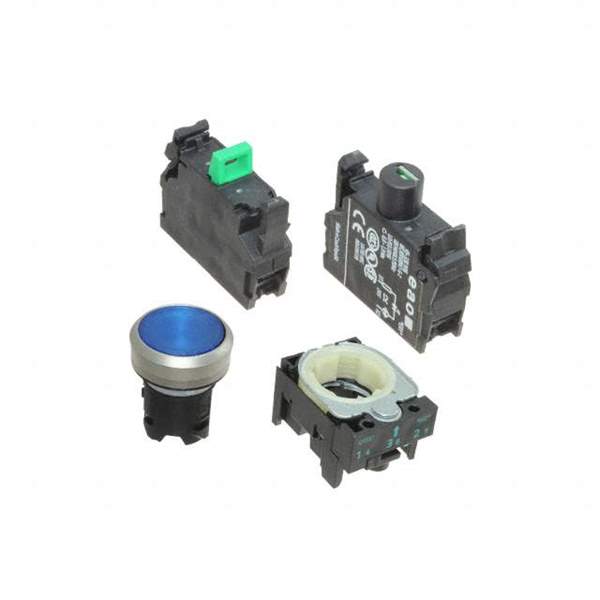

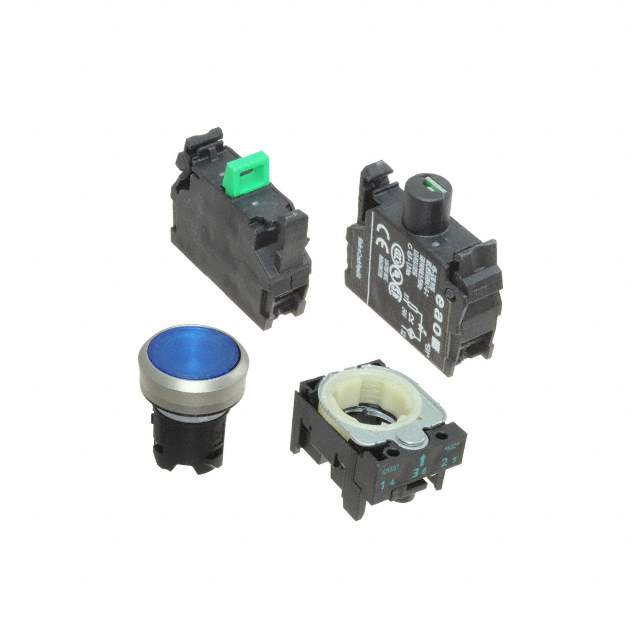

45-1231.11J6.000.101 Real Image
Same model may have multiple batches, images only for reference.

45-1231.11J6.000.101

Part No 45-1231.11J6.000.101
Manufacturer EAO
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 10A 500V / Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
Datasheet
45-1231.11J6.000.101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr EAO
Series 45
Package Bulk
Mounting Type Panel Mount, Front
Type Standard, Illuminated
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10A (AC/DC)
Voltage Rating - AC 500 V
Voltage Rating - DC 500 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Clear (Blue Filter/Diffuser)
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 24 VAC/DC
Termination Style Screw Terminal
Ingress Protection IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Temperature Range - Operating -25°C ~ 70°C
Mechanical Life 3,000,000 Cycles
Base Product Number 45-1231
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9035
Other Names 45-1231.11J6.000.101-ND,1948-1447
Standard Package 1
Win Source Part Number 1110914-45-1231.11J6.000.101
Ultra Librarian 3D Model Ultra Librarian 45-1231.11J6.000.101 CAD Model

Description

This is a pushbutton switch electronic component with Win Source Part Number of 1110914-45-1231.11J6.000.101.

  • Win Source Part Number: 1110914-45-1231.11J6.000.101
  • Type: Standard, Illuminated
  • Termination Style: Screw Terminal
  • Series: 45
  • Features: No specific features
  • Packaging: Bulk
  • Ingress Protection: IP66/IP67/IP69K
  • Voltage Rating (AC): 500V
  • Voltage Rating (DC): 500V
  • Switch Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Round, Button, Flush
  • Actuator/Cap Color: Clear Blue Filter/Diffuser
  • Mounting: Panel Mount, Front Mount
  • Operating Temperature: -25°C to 70°C
  • Electrical Life: Not specified
  • Mechanical Life: 3,000,000 cycles
  • Illumination Voltage: 24VAC/DC
  • Illumination Type: Blue LED
  • Illumination Color: Blue
