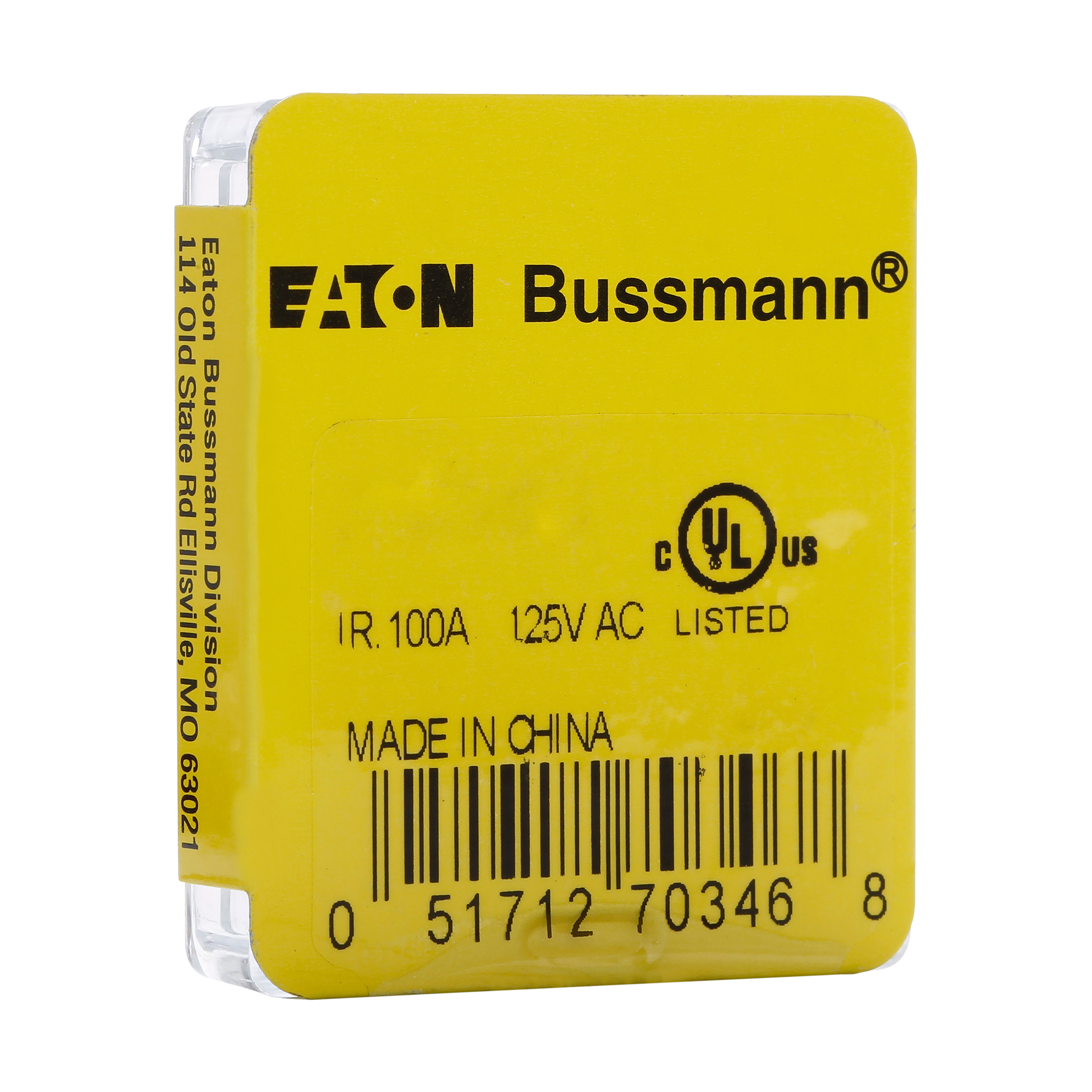

Same model may have multiple batches, images only for reference.
BK-S505H-V-500-R Eaton Bussmann – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BK-S505H-V-500-R

Part No BK-S505H-V-500-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE CERM 500MA 600VAC 400VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 500 mA
Voltage Rating - AC 600 V
Voltage Rating - DC 400 V
Response Time Slow Blow
Case / Package 5mm x 20mm (Axial)
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 0.188
Approval Agency cULus, PSE/JET
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.218\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1603675-BK-S505H-V-500-R
Ultra Librarian 3D Model Ultra Librarian BK-S505H-V-500-R CAD Model
