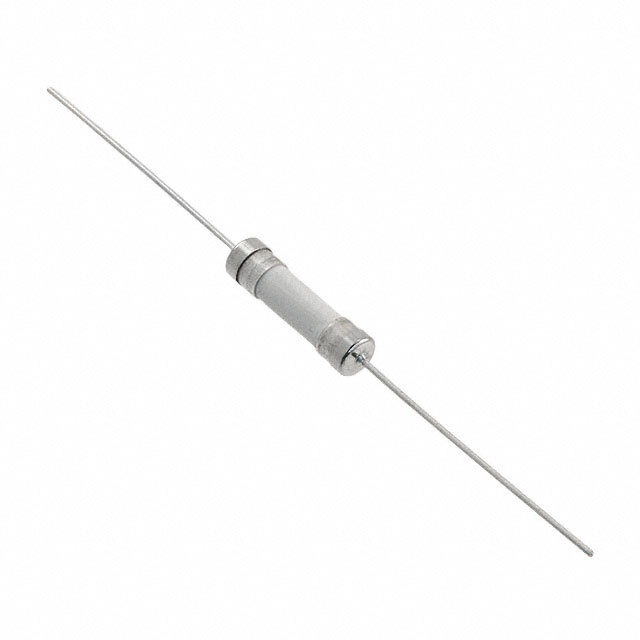

Same model may have multiple batches, images only for reference.
BK1/S505-3.15-R Eaton Bussmann – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BK1/S505-3.15-R

Part No BK1/S505-3.15-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE CERAMIC 3.15A 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 3.15 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Case / Package 5mm x 20mm
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 36.6
Approval Agency BSI, CCC/CQC, CSA, cURus, IMQ, KC, PSE/JET, SEMKO, VDE
Size / Dimension 0.205\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1603696-BK1/S505-3.15-R
Ultra Librarian 3D Model Ultra Librarian BK1/S505-3.15-R CAD Model
