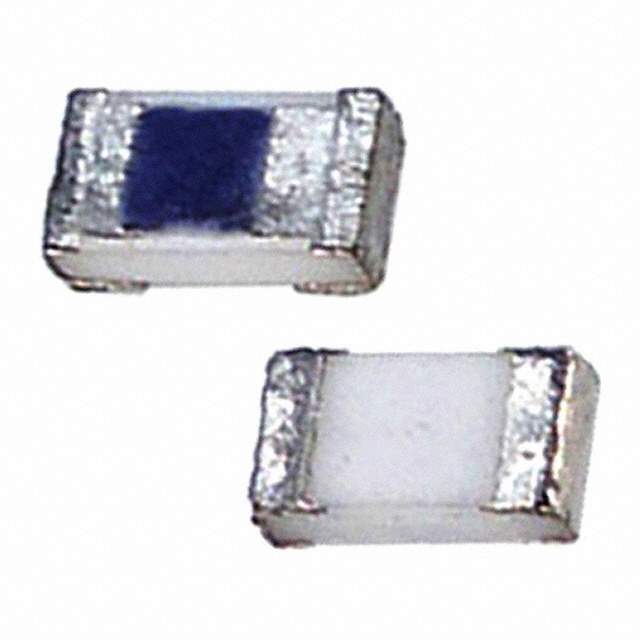

C2Q 1.5 Real Image
Same model may have multiple batches, images only for reference.

C2Q 1.5

Part No C2Q 1.5
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 1.5A 32VAC 63VDC / 1.5 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Datasheet
C2Q 1.5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series C2Q
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1.5 A
Voltage Rating - AC 32 V
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 35A AC, 50A DC
Melting I2t 0.084
Approval Agency CE, cURus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm)
DC Cold Resistance 0.073 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 507-1093-1,507-1093-2,C2Q1.5TR,C2Q 1.5REEL,C2Q1.5REEL,C2Q 1.5TR,0686150001,C2Q1.5,507-1093-6,C2Q15,0686-1500-01
Standard Package 5,000
Win Source Part Number 1050765-C2Q 1.5
Ultra Librarian 3D Model Ultra Librarian C2Q 1.5 CAD Model

Description

The Bel Fuse Inc. C2Q 1.5 is a board mount (cartridge style excluded) fuse that has a voltage rating - AC of 32 V and a voltage rating - DC of 63 V.

  • Response Time: Fast blow
  • Breaking Capacity @ Rated Voltage: 35A AC, 50A DC
  • Melting I2t: 0.084
  • DC Cold Resistance: 0.073 Ohms
  • Standard Package: 5,000
  • Mounting: SMD (SMT)
  • Package / Case: 0603 (1608 Metric)
  • Temperature Range - Operating: -55°C ~ 125°C
  • MSL Level: 1 (Unlimited)
  • Current Rating (amps): 1.5 A
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.10.0040
  • Alternative Parts: 3413.0117.22, 3412.0117.22, C2Q 1.250686-1500-01, C2Q-1.5, and C2Q1.5
  • Other Names: 507-1093-1,507-1093-2,C2Q1.5TR,C2Q 1.5REEL,C2Q1.5REEL,C2Q 1.5TR,0686150001,C2Q1.5,507-1093-6,C2Q15,0686-1500-01
