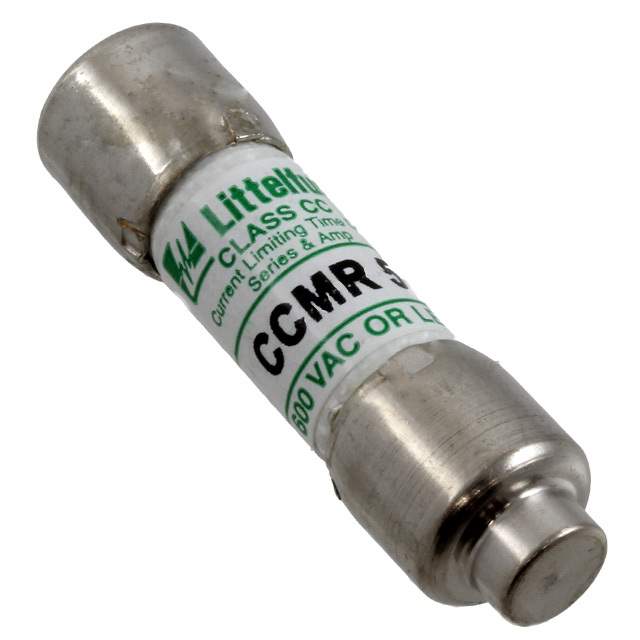

CCMR003.TXP Real Image
Same model may have multiple batches, images only for reference.

CCMR003.TXP

Part No CCMR003.TXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 3A 600VAC/300VDC  /  3A 600 V AC 300 V DC Fuse Cartridge Holder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD®, POWR-PRO® CCMR
Package Bulk
Mounting Type Holder
Fuse Type Cartridge
Current Rating (Amps) 3A
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Motor Protection
Class CC
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 300kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names CCMR 3A,CCMR3,-CCMR003.TXP,CCMR003,CCMR003.TXP-ND,CCMR3A,F10028
Standard Package 10
Win Source Part Number 1079564-CCMR003.TXP
Ultra Librarian 3D Model Ultra Librarian CCMR003.TXP CAD Model

Description

The Littelfuse Inc. CCMR003.TXP is a circuit protection electronic component that comes in a bulk packaging.

  • Fuse Type: Slow-blow cartridge fuse
  • Voltage Rating (AC): 600V
  • Voltage Rating (DC): 300V
  • Breaking Capacity (AC): 300kA @ Rated Voltage
  • Breaking Capacity (DC): 20kA @ Rated Voltage
  • Current Rating: 3A
  • Class: CC
  • Package/Case: 5AG, 10mm x 38mm (Midget)
  • Operating Temperature Range: -55°C to 125°C
  • Application: Motor protection applications
