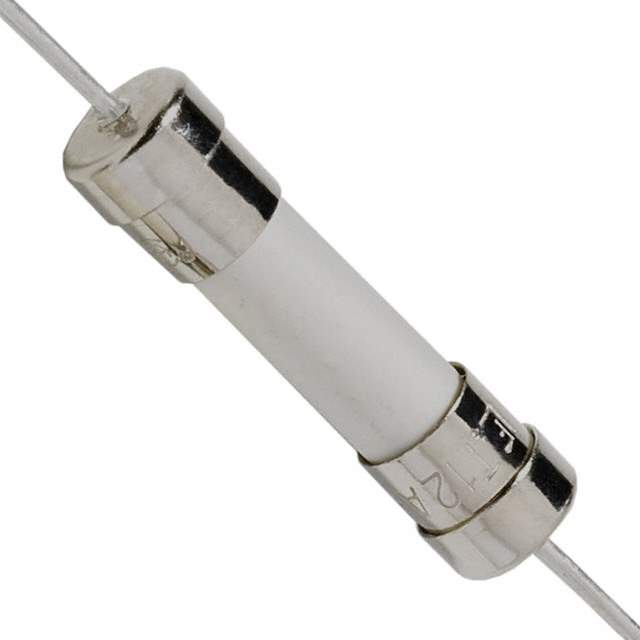

0477005.MXEP Real Image
Same model may have multiple batches, images only for reference.

0477005.MXEP

Part No 0477005.MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Axial Lead & Cartridge Fuses 5×20 mm > Time-Lag > 477 Series
Datasheet
0477005.MXEP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series 477
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating 5A
Voltage Rating - AC 500V
Voltage Rating - DC 400V
Response Time Slow
Package Cartridge, Non-Standard (Axial)
Mounting Style Through Hole
Breaking Capacity @ Rated Voltage 100A AC, 500A DC
Melting I2t 76.5
Approvals cULus, PSE, SEMKO
Operating Temperature Range -55°C ~ 125°C
Size 0.217" Dia x 0.846" L (5.50mm x 21.50mm)
Resistance 0.0137 Ohm
Win Source Part Number 1120681-0477005.MXEP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Limited
Family Name 477
Introduction Date January 14, 2009
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian 0477005.MXEP CAD Model

Description

The Littelfuse Inc. 0477005.MXEP is a high-quality electronic component that is designed for use in various applications.

  • Series: 477
  • Packaging: bulk
  • Mounting Style: through-hole
  • Operating Temperature Range: -55°C ~ 125°C
  • Package: cartridge, non-standard (axial)
  • Current Rating: 5A
  • Fuse Type: cartridge, ceramic
  • Voltage Rating: 500V AC and 400V DC
  • Response Time: slow
  • Breaking Capacity @ Rated Voltage: 100A AC, 500A DC
  • Melting I2t: 76.5
  • Approvals: cULus, PSE, and SEMKO
  • Size: 0.217" Dia x 0.846" L (5.50mm x 21.50mm)
  • Resistance: 0.0137 Ohm
  • Family Name: 477
  • Category: Circuit Protection
  • Manufacturer Homepage: www.littelfuse.com
  • Introduction Date: January 14, 2009
  • ECCN: EAR99
  • Country of Origin: China
  • Estimated EOL Date: 2022
  • Halogen-Free: compliant
  • Supply and Demand Status: limited
