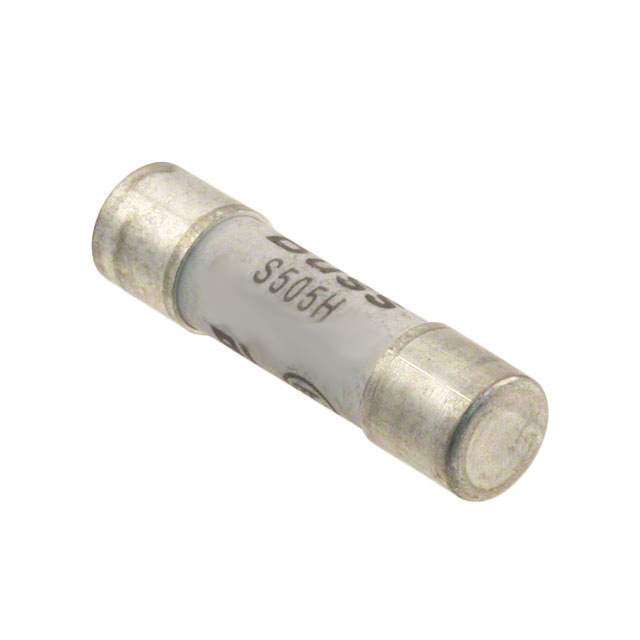

BK1-S505H-500-R Real Image
Same model may have multiple batches, images only for reference.

BK1-S505H-500-R

Part No BK1-S505H-500-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE CERAMIC 500MA 600VAC 400VDC / 500 mA 600 V AC 400 V DC Fuse Cartridge, Ceramic Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series S505H
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 500 mA
Voltage Rating - AC 600 V
Voltage Rating - DC 400 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 0.188
Approval Agency CCC, cULus, PSE/JET, TUV
Temperature Range - Operating -40°C ~ 85°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.507 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names BK1-S505H-500-R-ND,283-4377
Standard Package 1,000
Win Source Part Number 1049261-BK1-S505H-500-R
Ultra Librarian 3D Model Ultra Librarian BK1-S505H-500-R CAD Model

Description

The Eaton - Electronics Division BK1-S505H-500-R is a cartridge ceramic fuse that is commonly used in circuit protection products.

  • Voltage Rating: 600V AC and 400V DC
  • Response Time: Slow Blow
  • Breaking Capacity: 1.5kA @ Rated Voltage
  • Melting I2t: 0.188
  • DC Cold Resistance: 0.507 Ohms
  • Package / Case: 5mm x 20mm
  • Mounting Type: Holder
  • Temperature Range: -40°C to 85°C
  • Alternative Parts (Cross-Reference): 35406300029, 0477.500MXP, 35606300029, BK1/TDC10-500-R, BK1/TDC10-500MA, TR2-S505H-V-500-RBK1/S505H-500-R, and BK1S505H500R
  • Approvals: CCC, cULus, PSE/JET, and TUV
